Walt's Tractor Parts | Other Tractor Parts, Forklift Parts & Skidloader Parts | Massey Harris Tractor Parts | Miscellaneous Massey Harris Parts |  Seat Parts --

Seat Parts --

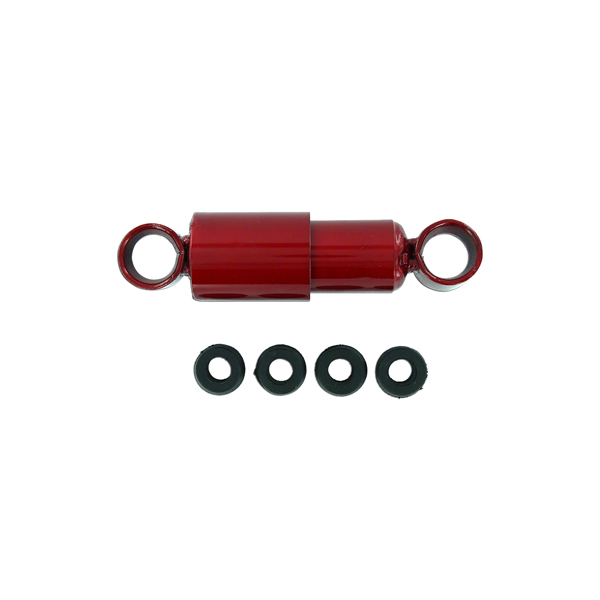

UF999756 Shock Absorber with Bushings - 231239

UF999756 Shock Absorber with Bushings - 231239
Seat Shock Absorber with bushings

Replaces 231239, 351750R93, 1002753M91, MHS044

Fits FORD: 1947 - 1954 with Monroe Easy Ride Seat - 8N, Jubilee, NAA

Fits INTERNATIONAL: C, Super C, HV, Super H, Super M, Super MD, Super MDTA, Super MTA, Super W6TA (w/ Standard Seat), 200, 230, 300, 350, 400, W400, 450, W450, 560, 600 (w/ Standard Seat), 650 (w/ Standard Seat), 660 (w/ Standard Seat), B (w/ Monroe Easy Ride Seat, BN (w/ Monroe Easy Ride Seat)

Fits MASSEY HARRIS: Mustang 23 (w/ Velvet Ride Seat), 22 (Late), 30, 33, 44, 55, 333, 444, 555

6-11/16" center to center compressed
8-1/2" fully extended
2.015" O.D. at the widest point
Mounts at the front of the seat frame

One horizontal bolt hole at each end

Seat Shock Absorber with Bushings

Price: $46.00

UT5370 Seat Shock - 351750R93

UT5370 Seat Shock - 351750R93
Seat Shock

Replaces 351750R93, 351750R92, 351750R91, 361033R91, 231239, IHS347

Fits INTERNATIONAL: B (w/ Monroe Easy Ride seat), BN (w/ Monroe Easy Ride seat), C, Super C, HV, Supre H, Super M, Super MD, Super MDTA, Super MTA, Super W6TA, 200, 230, 300 (Farmall Rowcrop), 350 (Farmall Rowcrop), 400, W400 (Wheatland), 450, W450 (Wheatland), 460 (International Utility), 560, 600, 650, 660

Fits ALLIS CHALMERS: w/ Monroe Easy Ride Seat - B, C, CA, RC, U, WC, WF

Fits MASSEY HARRIS: Mustang 23 (w/ Velvet Ride Seat), 22 (Late), 30, 33, 44, 55, 333, 444, 555

7-1/4" center to center compressed
9-1/8" fully extended
.514" diameter mounting bolt hole
.625" diameter hole with sleeve removed.
Mounts at the front of the seat frame.
Includes rubber bushings and metal bushings. The metal bushings may need to be removed for some applications.

Seat Shock

Price: $47.00

UA91373 Seat Pivot Support Rod, 3-1/2

UA91373 Seat Pivot Support Rod, 3-1/2" - 352616R1
Seat Pivot Support Rod, 3 1/2"

Replaces 352616R1, 352650R1, 355753R1, 72696R1, IHS584

Fits ALLIS CHALMERS: equpped w/ Monroe Easy Ride seat - B, C, CA, RC, U, WC, WF

Fits INTERNATIONAL: C, Super C, H, HV, Super H, Super HV, M, MD, Super M, Super MD, Super MDTA, Super MDV, MDV, Super MTA, MV, Super MV, Super W6TA, 200, 230, 300 (Farmall Rowcrop), 350 (Farmall Rowcrop), 400, 450, 560, 600, 650, 660

Fits JOHN DEERE: with optional MONROE EASY RIDE seat - A, B, G, H

Fits MASSEY HARRIS: Mustang 23 (w/ Velvet Ride Seat), 22 (Late), 30, 33, 44, 55, 333, 444, 555

Includes:
2 special machine washers
2 rubber bushings
2 #5 bolts
2 lock washers

Seat Pivot Support Rod

Price: $20.00

UT5362 Seat Pivot Support Rod, 4

UT5362 Seat Pivot Support Rod, 4" - 1000064M1
Pivot Pin, 4" Long

Replaces 1000064M1, MHS046

Fits CASE: with Optional Monroe Easy Ride Seat - S, SC, C, CC, CI, D, DC, DC-3, DC-4, DCS. DH, DI, DO, DV, SC-3, SC-4, SI, SO

Fits INTERNATIONAL: Late Models with Monroe Easy Ride Seat - F20, F30

Fits MASSEY HARRIS: Challenger (w/ Monroe Easy Ride Seat), Mustang 23, 30 (Late), 44 Special, 333, 444, 555 (w/ Velvet Ride Seat)

Fits MINNEAPOLIS MOLINE: with MONROE EASY RIDE SEAT - BF, BG, BIG, General

4" Long

Pivot Pin

Price: $28.00

UF999755 Seat Pivot Support Rod, 6

UF999755 Seat Pivot Support Rod, 6" - 230287
6" Seat Pivot Support Rod

Replaces 230287, 352648R1, 352650R1, 72696R1, IHS585

Rod Length : 6"
Rod Diameter: .710"
Thread dimensions: 1/2"-20 UNF
Overall length : 7-1/4"

Fits FORD: 1947-1954 w/ Monroe Seat - 8N, NAA

Fits INTERNATIONAL: H, HV, Super H, Super HV, M, MD, Super M, Super MD, Super MDV, MDV, Super MTA, MV, Super MV

Fits MASSEY HARRIS: Mustang 23 (w/ Velvet Ride Seat), 22 (Late), 30, 33, 44, 55, 333, 444, 555

Includes:
2 special machine washers
2 rubber bushings
2 #5 bolts
2 lock washers

Seat Pivot Support Rod, 6"

Price: $24.00

MH1508 Seat Pivot Support Rod, 9

MH1508 Seat Pivot Support Rod, 9" - 1000018M1
Seat Pivot Support Rod, 9"

Replaces 1000018M1, MHS1906

Fits MASSEY HARRIS: 33 (Some), 44, 44-6

10.656" Overall Length

Includes Rod, 2 flat washers, 2 rubber bushings, 2 bolts

Price: $30.00

UA91374 Seat Shock Bushing, Rubber - 222488

UA91374 Seat Shock Bushing, Rubber - 222488
Rubber Seat Shock Bushing

Replaces 222488, 70222488, T19118, 230288, 250416R1, 72696R1, F3296R, R26832, 760674M1, IHS325

Fits ALLIS CHALMERS: B, C, CA, D10, D12, D14, D15, D17, D19, D21, RC, U, WC, WD, WD45, WF, 170, 175, 180, 185, 190, 190XT, 200, 210, 220, 7000, 7010, 7020, 7030, 7040, 7045, 7050, 7060, 7080, 7580

Fits CASE: equipped w/ Monroe Easy Ride seat - S, SC, C, CC, CI, D, DC, DC-3, DC-4, DCS, DH, DI, DO, DV, SC-3, SC-4, SI, SO

Fits FORD: equipped w/ Monroe Easy Ride seat - 9N (1939-1952), 2N, (1939-1952), 8N (1939-1952), Jubilee (1954), NAA (1953)

Fits INTERNATIONAL: C, Super C, H, HV, Super H, Super HV, M, MD, Super M, Super MD, Super MDV, MDV, MTA, MV, Super MV, F20 (with Monroe Easy Ride seat), F30 (w/ Monroe Easy Ride seat), 200, 230, 300, 350, 400, 450, 460, 560, 600, 650, 660

Fits JOHN DEERE: A (w/ Easy Ride seat), B (w/ Easy Ride seat), G (w/ Easy Ride seat), L (w/ Easy Ride seat), LA (w/ Easy Ride seat), 50 (w/ Float Ride seat), 520 (w/ Float Ride seat), 530 (w/ Float Ride seat), 620 (w/ Float Ride seat), 630 (w/ Float Ride seat), 720 (w/ Float Ride seat), 730 (w/ Float Ride seat), 80 (w/ Float Ride seat), 820 (2 Cyl, w/ Float Ride seat), 830 (2 Cyl, w/ Float Ride seat), 1020, 1030, 1520, 2020, 2030, 2035, 2130, 2135, 2140 (SN 430000 & After), 2350, 2440 (SN 340999 & After), 2510, 2520, 2550, 2630, 2640 (SN 340999 & After), 2750, 2940, 2950, 3010, 3020, 3130, 3040 (SN430000 & After), 3135, 3140 (SN 430000 & After), 4000, 4010, 4020, 4030, 4040, 4050, 4055, 4230, 4240, 4250, 4255, 4320, 4430, 4440, 4450, 4455, 4520, 4620, 4630, 4640, 4650, 4840, 4850, 5010, 5020, 6030, 7020, 7520, 8430, 8630

Fits MASSEY HARRIS: Challenger (w/ Monroe Easy Ride seat), Mustang (23), 22, 30, 33, 44, 333, 444, 555

Fits MINNEAPOLIS MOLINE: equipped w/ Monroe Easy Ride seat - BF, BG, BIG, General

Fits OLIVER: equipped w/ Monroe Easy Ride seat - 60, 70, 80, 90

For the horizontal bolt hole(s)
1.223" outside diameter at the largest point
0.597" hole inside diameter
0.724" overall length

Seat Shock Bushing, Rubber

Price: $3.00

UA91379 Shock Absorber Mounting Bolt - 230290

UA91379 Shock Absorber Mounting Bolt - 230290
Shock Absorber Mounting Bolt

Replaces 230290, T19121, 351751R1, 760662M1, ABC526

Fits ALLIS CHALMERS: equipped with Monroe Easy Ride seat - B, C, CA, RC, U, WC, WD (Seviceable Only), WD45 (Seviceable Only), WF

Fits FORD: equipped with Monroe Easy Ride seat (1939-1954) - 9N, 2N, 8N, Jubilee, NAA

Fits INTERNATIONAL: Super MDTA, MTA, WD6TA

Fits MASSEY HARRIS: equipped with Monroe Easy Ride seat - Challenger

Fits MINNEAPOLIS MOLINE: equipped with Monroe Easy Ride seat - BF, BG, BIG, General

Fits OLIVER: equipped with Monroe Easy Ride seat - 60, 70, 80

Silver zinc finish
7/16" - 20 NF thread
0.625" shoulder
2.380" overall length

Shock Absorber Mounting Bolt

Price: $11.00

UT5365 Seat Coil Spring - 354670R1

UT5365 Seat Coil Spring - 354670R1
New Seat Coil Spring

Replaces T19117, T19886, 230279, 354670R1, 354670, 354670R2, 760666M2, 760669M1, 760699M1, IHS030

Fits ALLIS CHALMERS: equipped w/ optional Monroe Easy Ride Seat - B, C, CA, RC, U, WC, WF

Fits FORD: equipped w/ optional Monroe Easy Ride Seat - 9N (1939-1954), 2N (1939-1954), 8N, (1939-1954), Jubilee (1939, 1954), NAA (1939-1954)

Fits INTERNATIONAL: Farmall - B (w/ Monroe Easy Ride Seat), BN (w/ Monroe Easy Ride Seat), C, Super C, H, HV, Super H, Super HV, M, MD, Super M, Super MDV, Super MTA, MV, Super MV, F20, F30, 200, 230, 300 (Row Crop), 350 (Row Crop), 400 (Row Crop), 450 (Row Crop), 460, 560. 600, 650, 660

Fits OLIVER: equipped with optional Monroe Easy Ride Seat - 60, 70, 80, 90

Seat Coil Spring, New

Price: $32.00
