Compressor

UF99057 Compressor - Replaces 82016158

UF99057 Compressor - Replaces 82016158
Aftermarket Sanden SD7H15, 4.7" Serpentine Clutch, Vertical 8 and 10 O-Ring

Replaces 82016158, 82008689, 82002069, 87709786, 509-5403

Fits FORD NEW HOLLAND: 8160, 8260, 8360, 8560, TM115, TM120, TM125, TM130
TM135, TM140, TM150, TM155, TM165, TM175, TM190, TV140 (01/01/1998 and Newer), TV145

Fits CASE INTERNATIONAL: MXM120, MXM130, MXM140, MXM155, MXM175, MXM190

Specifications

COMPRESSOR TYPE SD7H15
HEAD TYPE JD
OIL TYPE R134 Pag Oil
CLUTCH DIAMETER 119mm, 4.68"
VOLTAGE 12
GROOVES 8
BELT WIDTH Serpentine
COIL POSITION N/A
GAUGE LINE 37.60C, 50.10F

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Price: $280.00

UF990570 Compressor - Replaces 82016158

UF990570 Compressor - Replaces 82016158

 Original Sanden SD7H15, 4.7" Serpentine Clutch, Vertical 8 and 10 O-Ring

Replaces - 82016158, 82008689, 82002069, 87709786, 509-540

Fits FORD NEW HOLLAND: 8160, 8260, 8360, 8560, TM115, TM120, TM125, TM130, TM135
TM140, TM150, TM155, TM165, TM175, TM190, TV140 (01/01/1998 and Newer), TV145

Fits CASE INTERNATIONAL: MXM120, MXM130, MXM140, MXM155, MXM175, MXM190
Specifications

COMPRESSOR TYPE SD7H15
HEAD TYPE JE
OIL TYPE R134 Pag Oil
CLUTCH DIAMETER 119mm, 4.68"
VOLTAGE 12
GROOVES 8
BELT WIDTH Serpentine
COIL POSITION N/A
OIL QUANTITY 135cc, 4.56oz.
GAUGE LINE 37.60C, 50.10F

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Price: $390.00

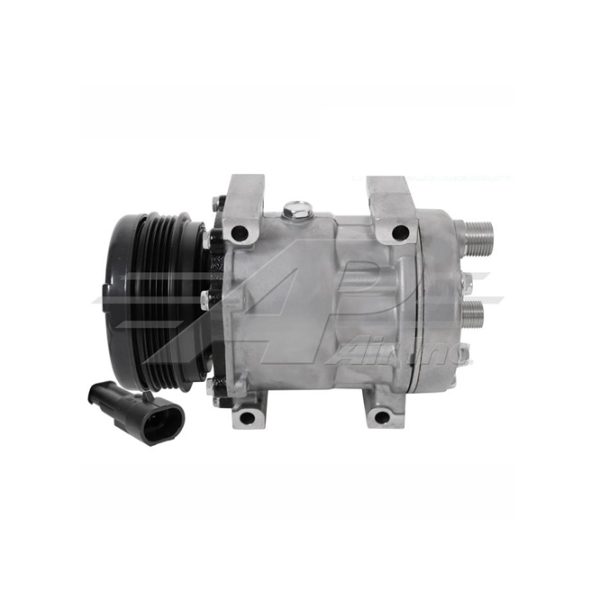

UF999915 Compressor - Replaces 87519620

UF999915 Compressor - Replaces 87519620
Aftermarket Sanden SD7H15, 4.84" 4 Groove Clutch, Direct Mount, Horizontal 8 and 10 O-Ring

Replaces 87519620, 509-63923

Fits FORD NEW HOLLAND: TD5010(Fits Tier III Models), TD5020(Fits Tier III Models), TD5030, TD5040, TD5050
T4020, T4030, T4040, T4050,T5030, T5040, T5050, T5060, T5070
T4.65, T4.75

Fits CASE INTERNATIONAL: Farmall N Series: 75N, 85N, 95N, 105N
Farmall U Series: 85U, 95U, 105U
Farmall Utility Series: 70, 80, 90, 95

Specifications
COMPRESSOR TYPE SD7H15
HEAD TYPE KG
OIL TYPE R134 Pag 100 Oil
CLUTCH DIAMETER 112mm, 4.409"
VOLTAGE 12
GROOVES 4
BELT WIDTH Serpentine
OIL QUANTITY 190cc, 6.46 oz
GAUGE LINE 49.65C, 56.46F

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Price: $285.00

UF999916 Compressor - Replaces 87519620

UF999916 Compressor - Replaces 87519620
Original Sanden SD7H15, 4.6" 4 Groove Clutch, Direct Mount, Horizontal 8 and 10 O-Ring

Replaces 87519620, 509-6392

Fits FORD NEW HOLLAND: TD5010(Fits Tier III Models), TD5020(Fits Tier III Models), TD5030, TD5040, TD5050
T4020, T4030, T4040, T4050, T5030, T5040, T5050, T5060, T5070
T4.65, T4.75

Fits CASE INTERNATIONAL: Farmall N Series: 75N, 85N, 95N, 105N
Farmall U Series: 85U, 95U, 105U
Farmall Utility Series: 70, 80, 90, 95

Specifications
COMPRESSOR TYPE SD7H15
HEAD TYPE KG
OIL TYPE R134 Pag 100 Oil
CLUTCH DIAMETER 112mm, 4.409"
VOLTAGE 12
GROOVES 4
BELT WIDTH Serpentine
OIL QUANTITY 190cc, 6.46 oz
GAUGE LINE 49.65C, 56.46F

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Price: $395.00

UCA999858 Compressor - Replaces 73337492

UCA999858 Compressor - Replaces 73337492
Original Sanden SD7H15, 152mm 4 Groove Clutch, Direct Mount, MD Head, 12V

Replaces 84356660, 47693200, 73337492, 47693200, 509-63957

Fits FORD NEW HOLLAND: TS6.100, TS6.120, TS6.125, TS6.140

Fits FARMALL: 120A, 125A, 130A, 140A

Specifications
COMPRESSOR TYPE SD7H15
HEAD TYPE MD
OIL TYPE R134 Pag 100 Oil
CLUTCH DIAMETER 152mm
VOLTAGE 12
GROOVES 4
BELT WIDTH Serpentine
GAUGE LINE 49.65C, 54.80F

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Price: $365.00

UCA999859 Compressor - Replaces 84290377

UCA999859 Compressor - Replaces 84290377
Original Sanden SD7H15 4 1/2" 4 Groove Clutch, Direct Mount, Vertical 8 and 10 O-Ring

Replaces 84290377, 509-6398

Fits FORE NEW HOLLAND: T4.55, T4.65, T4.75, T4.85, T4.95, T4.105
T5.95, T5.105, T5.115

Fits CASE INTERNATIONAL: Farmall 85A, Farmall 95A, Farmall 105A, Farmall 115A, Farmall 95U, Farmall 105U, Farmall 115U

Specifications
COMPRESSOR TYPE SD7H15
HEAD TYPE JE
OIL TYPE R134a Pag Oil
CLUTCH DIAMETER 112mm, 4.41"
VOLTAGE 12
GROOVES 4
BELT WIDTH Serpentine
OIL QUANTITY 190cc, 6.42oz.

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Price: $535.00

UCA999917 Compressor - Replaces 317008A3

UCA999917 Compressor - Replaces 317008A3
Aftermarket SD7H15HD, 6" Serpentine Clutch, Horizontal Tube O-Ring

Replaces - 317008A3, 86993463, 86992688, 504078610, 317008A2, 504290050, 87775469, 47809628, 509-6033

Fits FORD NEW HOLLAND: T8010, T8020, T8030, T8040, T9030, T9040, T9050, T9060,
T8.275, T8.300, T8.330, T8.360, TG230, TG255, TG210, TG285, TJ375, TJ380, TJ425, TJ430, TJ450, TJ480, TJ500, TJ530

Fits CASE INTERNATIONAL: MX240(MUST ID COMPRESSOR MOUNTING STYLE & CLUTCH), MX210, MX215, MX225, MX230, MX245, MX240 (Must Identify Compressor Mounting Style and Clutch) MX250, MX255, MX275, MX280, MX285, MX305, MX310

Magnum 215, 235, 245, 255, 260, 275, 290, 305, 315, 335, 340, 370, 380

Specifications
COMPRESSOR TYPE SD7H15HD
HEAD TYPE MD
OIL TYPE Pag 100
CLUTCH DIAMETER 152mm, 5.98"
VOLTAGE 12
GROOVES 8
BELT WIDTH Serpentine
COIL POSITION N/A
OIL QUANTITY 285cc, 9.64oz.
GAUGE LINE 53.00C, 63.55F

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Price: $355.00

UCA999918 Compressor - Replaces 86993463

UCA999918 Compressor - Replaces 86993463
Air conditioning compressor, New Original Sanden compressor – direct mount – SD7H15HD,
6" serpentine clutch, horizontal tube o-ring

Replaces - 317008A3, 86993463, 86992688, 504078610, 317008A2, 504290050, 87775469, 47809628, 00.0564.056.0, 509-603

Fits FORD NEW HOLLAND: T8010, T8020, T8030, T8040, T9030, T9040, T9050, T9060, TG230, TG255, TG210, TG285, TJ375, TJ380, TJ425, TJ430, TJ450, TJ480, TJ500, TJ530

Fits CASE INTERNATIONAL: MX240(MUST ID COMPRESSOR MOUNTING STYLE & CLUTCH), MX210, MX215, MX225, MX230, MX240 (Must Identify Compressor Mounting Style and Clutch) MX245, MX250, MX255, MX275, MX280, MX285, MX305, MX310

Magnum 215, 235, 245, 255, 260, 275, 290, 305, 315, 335, 340, 370, 380

Specifications
COMPRESSOR TYPE SD7H15HD
HEAD TYPE MD
OIL TYPE R134 Pag Oil
CLUTCH DIAMETER 152mm, 5.98"
VOLTAGE 12
GROOVES 8
BELT WIDTH Serpentine
COIL POSITION N/A
OIL QUANTITY 285cc, 9.64oz.
GAUGE LINE 53.00C, 63.55F

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Price: $445.00

UCA999919K A/C Kit with Compressor - Replaces 890-6032

UCA999919K A/C Kit with Compressor - Replaces 890-6032
Replaces: 890-6032

Fits CASE INTERNATIONAL: MX210, MX240, MX230, MX255, MX285

Kit Includes Compressor 86992688, Receiver Drier, Expansion Valve, and O-Rings

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Price: $530.00

UF999875 A/C Kit with Sanden Compressor - Replaces 890-6031

UF999875 A/C Kit with Sanden Compressor - Replaces 890-6031
Kit Includes Compressor, Receiver Drier, Expansion Valve, and O-Rings

Kit with Original Sanden Compressor (00.0564.056.0, 869926288, 86993463, 317008A3, 47809628)

Replaces 890-6031

Fits FORD NEW HOLLAND: T8010

Fits CASE INTERNATIONAL: MX245, MX275, MX305
Magnum 215, 235, 245, 255, 260, 275, 290, 305, 315, 335, 340

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Price: $530.00

UCA999975 A/C Kit - Replaces - 890-5601

UCA999975 A/C Kit - Replaces - 890-5601
Kit Includes 509-560 Compressor (1977958C1, AG325732, 86993462, 19997552, 47773024), Receiver Drier, Expansion Valve, and O-Rings

Replaces: 890-5601

Fits CASE INTERNATIONAL: 5120, 5130, 5140, 5150, 5220, 5230, 5240, 5250
7110, 7120, 7130, 7140, 7150, 7210, 7220, 7230, 7240, 7250
8910, 8920, 8930, 8940, 8950
MX80C, MX90C, MX100C, MX100, MX110, MX120, MX135, MX150, MX170, MX180, MX200, MX220, MX240, (Must Identify Compressor Mounting Style and Clutch), MX270, , CX50, CX60, CX70, CX80, CX90, CX100
MX80C, MX90C, MX100C, MX100, MX110, MX120, MX135, MX150, MX170, MX180, MX200, MX220, MX240, (Must Identify Compressor Mounting Style and Clutch), MX270, , CX50, CX60, CX70, CX80, CX90, CX100

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge


Price: $485.00

UF99063 Compressor - Replaces 86993462

UF99063 Compressor - Replaces 86993462
Alternative Compressor SD7H15 - 152mm, 2 Groove Clutch 12V

Replaces - 1999755C1, 1999755C2, 1999755C3, 86993462, 86993462RGV, 1977958C1, AG325732, 19997552, 47773024, 509-560 1343925C1, 1977959C1, 2025220010, 47109148, 700712705, 700713317, 97204C1, 509-5603

Fits FORD NEW HOLLAND: TJ275, TJ280, TJ325, TJ330, T9020, T7510, T7520, T7530, T7550, T9010, T9020

Fits CASE INTERNATIONAL: 5120, 5130, 5140, 5150, 5220, 5230, 5240, 5250

7110, 7120, 7130, 7140, 7150, 7210, 7220, 7230, 7240, 7250

8910, 8920, 8930, 8940, 8950

MX80C, MX90C, MX100C, MX100, MX110, MX120, MX135, MX150, MX170, MX180, MX200, MX220, MX240(Must Identify Compressor Mounting Style and Clutch), MX270

CX50, CX60, CX70, CX80, CX90, CX100, C70, C80, C90, C100

Magnum 180, 190, 310

Specifications
COMPRESSOR TYPE SD7H15
HEAD TYPE MD
OIL TYPE Pag 100
CLUTCH DIAMETER 152mm, 5.98"
VOLTAGE 12
GROOVES 2
BELT WIDTH 1/2"
COIL POSITION N/A
OIL QUANTITY 285cc, 9.6 oz.
GAUGE LINE 39.55mm

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Price: $315.00

UF99062 Compressor - Replaces 1999755C2

UF99062 Compressor - Replaces 1999755C2
Compressor SD7H15 - 152mm, 2 Groove Clutch 12V, With Dust Cover

Replaces - 1999755C1, 1999755C2, 1999755C3, 86993462, 86993462RGV, 1977958C1, AG325732, 19997552, 47773024, 509-560 1343925C1, 1977959C1, 2025220010, 47109148, 700712705, 700713317, 97204C1, 509-560

Fits FORD NEW HOLLAND: TJ275, TJ280, TJ325, TJ330, T9020, T7510, T7520, T7530, T7550, T9010, T9020

Fits CASE INTERNATIONAL: 5120, 5130, 5140, 5150, 5220, 5230, 5240, 5250

7110, 7120, 7130, 7140, 7150, 7210, 7220, 7230, 7240, 7250

8910, 8920, 8930, 8940, 8950

MX80C, MX90C, MX100C, MX100, MX110, MX120, MX135, MX150, MX170, MX180, MX200, MX220, MX240(Must Identify Compressor Mounting Style and Clutch), MX270

Magnum 180, 190, 310

CX50, CX60, CX70, CX80, CX90, CX100, C70, C80, C90, C100

Specifications
COMPRESSOR TYPE SD7H15SHD
HEAD TYPE MD
OIL TYPE Pag 100
CLUTCH DIAMETER 152mm, 5.98?
VOLTAGE 12
GROOVES 2
BELT WIDTH 1/2?
COIL POSITION N/A
OIL QUANTITY 285cc, 9.6 oz.
GAUGE LINE 39.55mm

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Price: $375.00

UCA999992 Compressor - Replaces 5176185

UCA999992 Compressor - Replaces 5176185
Compressor SD5H11, 5" 2 Groove Clutch, Vertical Tube O-Ring

Replaces: 5176185, 05811103, 509-3983

Fits FORD NEW HOLLAND: TN55D, TN55S, TN60DA, TN60SA, TN65D, TN65S, TN70D, TN70DA, TN70S, TN70SA, TN75D, TN75DA, TN75D, TN75SA

Fits CASE INTERNATIONAL: JX1060C, JX1070C, JX1075C, JX1080U, JX1090U, JX1100U

2.885 Between Ears

Specifications
COMPRESSOR TYPE SD5H11
HEAD TYPE C
OIL TYPE R134 Pag Oil
CLUTCH DIAMETER 125mm, 5"
VOLTAGE 12
GROOVES 2
BELT WIDTH 1/2"
COIL POSITION N/A
OIL QUANTITY 4.5 oz.
GAUGE LINE 28.10C, 44.00F

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Price: $300.00

UCA999993 Compressor - Replaces 5176185

UCA999993 Compressor - Replaces 5176185
Original Sanden SD5H11, 5" 2 Groove Clutch, Vertical Tube O-Ring

Replaces: 5176185, 05811103, 509-398

Fits FORD NEW HOLLAND: TN55D, TN55S, TN60DA, TN60SA, TN65D, TN65S, TN70D, TN70DA, TN70S, TN70SA, TN75D, TN75DA, TN75D, TN75SA

Fits CASE INTERNATIONAL: JX1060C, JX1070C, JX1075C, JX1080U, JX1090U, JX1100U

Specifications
COMPRESSOR TYPE SD5H11
HEAD TYPE C
OIL TYPE R134 Pag Oil
CLUTCH DIAMETER 125mm, 5"
VOLTAGE 12
GROOVES 2
BELT WIDTH 1/2"
COIL POSITION N/A
MOUNTING HOLES 2.885 Between Ears
OIL QUANTITY 4.5 oz.
GAUGE LINE 28.10C, 44.00F

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Price: $470.00

UF999946 Compressor - Replaces 47132887

UF999946 Compressor - Replaces 47132887
Compressor SD7H15 - 132mm, 2 Groove Clutch 12V

Replaces: UA98314, UW0119, UF999946, 47132887, 72275276, 72201567, 30-3373029, 509-5553

Fits FORD NEW HOLLAND: TL80A, TL90A, TL100A, TN85DA, TN85SA, TN95DA

Fits CASE INTERNATIONAL: JX1080U, JX1090U, JX1100U

Fits ALLIS CHALMERS: 6670 (SN 1154 and Above), 6680 (SN 1317 and Above), 6690 (SN 1929 and Above), 7600 (SN 1387 and Above), 7630 (SN 1066 and Above), 7650 (SN 1016 and Above), 8610 (SN 1389 and Above), 8630 (SN 1509 and Above)

Fits WHITE: 2-88, 2-110, 2-135(SN 299208 and Above), 2-155(SN 299208 and Above), 2-180(SN 301922 and Above), 100, 120, 125, 140, 145, 160, 170, 185, 195, 6105(SN 1402 and Above), 6124, 6144, 6145(SN 642001 and Above), 6125(SN 622001 and Above), 6175(CHECK SERIAL NUMBER), 6195(SN 681001 and Above)
Fits: 60 Series, 80 Series

Specifications
HEAD TYPE CB
OIL TYPE Pag Oil
CLUTCH DIAMETER 132mm, 5.19"
GROOVES 2
BELT WIDTH 1/2"
COIL POSITION N/A
VOLTAGE 12
COMPRESSOR TYPE SD7H15
GAUGE LINE 39.55mm

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Price: $270.00

UF999947 Compressor - Replaces 47132887

UF999947 Compressor - Replaces 47132887
OE Sanden Compressor SD7H15 - 132mm, 2 Groove Clutch 12V, Without Charge Ports

Replaces: UA98313, UW0118, UF999947, 47132887, 72275276, 72201567, 30-337302, 509-555

Original Sanden SD7H15, 5 1/4" 2 Groove Clutch, Vertical Tube O-Ring

Fits Ford New Holland : TL80A, TL90A, TL100A, TN85DA, TN85SA, TN95DA

Fits Case International : JX1080U, JX1090U, JX1100U

Fits Allis Chalmers : 6670 (SN 1154 and Above), 6680 (SN 1317 and Above), 6690 (SN 1929 and Above), 7600 (SN 1387 and Above), 7630 (SN 1066 and Above), 7650 (SN 1016 and Above), 8610 (SN 1389 and Above), 8630 (SN 1509 and Above)

Fits White : 2-88, 2-110, 2-135(SN 299208 and Above), 2-155(SN 299208 and Above), 2-180(SN 301922 and Above), 100, 120, 125, 140, 145, 160, 170, 185, 195, 6105(SN 1402 and Above), 6124, 6144, 6145(SN 642001 and Above), 6125(SN 622001 and Above), 6175(CHECK SERIAL NUMBER), 6195(SN 681001 and Above), 60 Series, 80 Series

Specifications
HEAD TYPE CB
OIL TYPE R134 Pag Oil
CLUTCH DIAMETER 132mm, 5.19"
GROOVES 2
BELT WIDTH 1/2"
COIL POSITION N/A
OIL QUANTITY 240cc, 8.11oz.
VOLTAGE 12
COMPRESSOR TYPE SD7H15HD
GAUGE LINE 39.55mm

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Price: $340.00

UF99059 Compressor - Replaces 5165549

UF99059 Compressor - Replaces 5165549
OE Sanden Compressor SD7H15 - 134mm, 2 Groove Clutch 12V

Replaces 5165549, 5165548, 5165549, 84316006, 509-5552

Fits FORD NEW HOLLAND: 3830, 4330V, 4835, 5635, 6635, 7635, TL70, TL80, TL90, TL100, TL70A, TL90A,TD80, TD60D, TD70D, TD75D, TD80D, TD90D, TD95D

Fits CASE INTERNATIONAL: JX55, JX60, JX65, JX70, JX70U, JX75, JX80, JX80U, JX85, JX90, JX90U, JX95, JX100U

With Dust Cover

Specifications
COMPRESSOR TYPE SD7H15
HEAD TYPE CB
OIL TYPE R134 Pag Oil
CLUTCH DIAMETER 134mm, 5.28"
SHAFT TYPE Splined Shaft
VOLTAGE 12v, 1 Wire
GROOVES 2
BELT WIDTH 0.4"
OIL QUANTITY 135cc, 4.6 oz.
GAUGE LINE 38.90mm

Compressor Warranty Notice: Failure to provide work order and follow these 8 steps when installing compressor will void warranty. Any questions, please ask.
1.Check compressor clutch prior to installation for proper air gap and any misalignment.
2.Check compressor for proper oil amount per OEM or manufacturers recommendation.
3.Must flush Air Conditioning system with proper flush and flushing method including replacement of new hoses, condenser and/or evaporator.
4.Must replace expansion valve or orifice tube.
5.Check for proper airflow through cooling fins of condenser and radiator. Replace if needed.
6.Must replace filter drier or accumulator.
7.Evacuate system to deep vacuum, 29.95 in. -HG, inches of vacuum.
8.Check for correct gas charge

Price: $445.00

Walt's Tractor Parts | Case / David Brown / Case IH Tractor Parts | Case/DB/Case IH Cab Parts | Air Conditioning Parts |  Compressor

Recently Viewed Parts


Customer Services

Website Information

How to get in touch with us

Call us on
888-414-4043888-414-4043

Waltstractors.com
2634 Audrain Road 381, Mexico, Missouri, 65265

Buy now with PayPal

© 2014 - 2026 Waltstractors.com
