Walt's Tractor Parts | John Deere Tractor Parts | John Deere Cab Parts | Air Conditioning Parts |  Evaporator Core

Evaporator Core

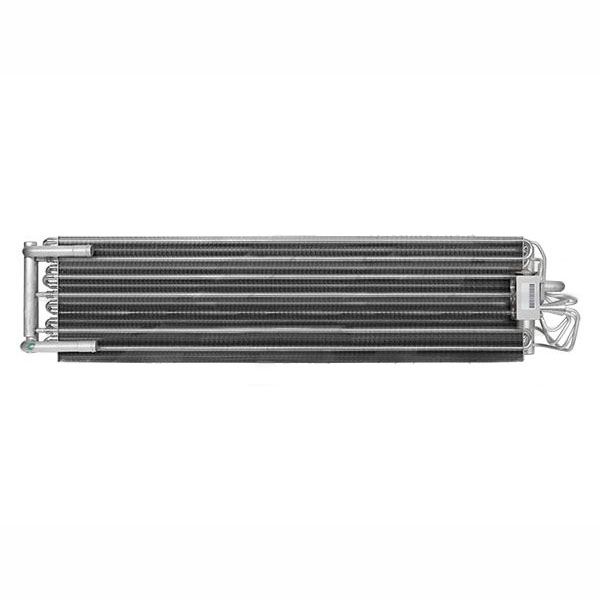

UJD999588 Evaporator, New - AL203684

UJD999588 Evaporator, New - AL203684
New Evaporator

Replaces AL203684, 590-5637

Fits JOHN DEERE: 6105R, 6110R, 6115R, 6120R, 6125R, 6130R, 6140R, 6145R, 6150R, 6155R, 6170R, 6175R, 6190R, 6210R

Specifications
VALVE TYPE Block
FITTING TYPE O-Ring
CORE LENGTH 26 3/4"
CORE HEIGHT 7"
CORE THICKNESS 4"
OVERALL LENGTH 31"
OVERALL HEIGHT 7"
OVERALL WIDTH 5 3/4"
FITTING INLET #8
FITTING OUTLET #10
INLET Heater Core 5/8"
OUTLET Heater Core 5/8"

Evaporator, New

Price: $450.00

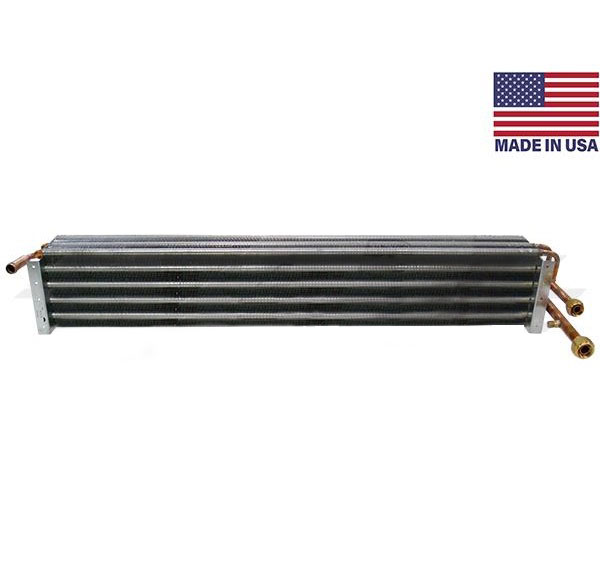

UJD999675 High Efficiency Evaporator/Heater Core, New - AR88076

UJD999675 High Efficiency Evaporator/Heater Core, New - AR88076
New High Efficiency Evaporator with Heater Core - Must Reuse Original Brackets

Replaces AR88076, RE52265, AR85245, AZ37729, AG331433, 590-5685

Fits JOHN DEERE: 4030, 4230, 4430, 4630
Replaces Early Models With Separate Heater Core, Tractors With Separate Heater Core Must Remove Roof Panel Spacer For Clearance
4040, 4240, 4440, 4640, 4840, 4055, 4255, 4455, 4555, 4755, 4955, 4050, 4250, 4450, 4650, 4850

Specifications
VALVE TYPE Bulb Type
FITTING TYPE O-Ring
CORE LENGTH 29"
CORE HEIGHT 5"
CORE WIDTH 3 1/8"
OVERALL LENGTH 33 1/4"
OVERALL HEIGHT 5"
OVERALL WIDTH 12 1/2"
FITTING INLET #8 Female O-Ring
FITTING OUTLET #10 Female O-Ring

Evaporator - Heater Core, New

Price: $280.00

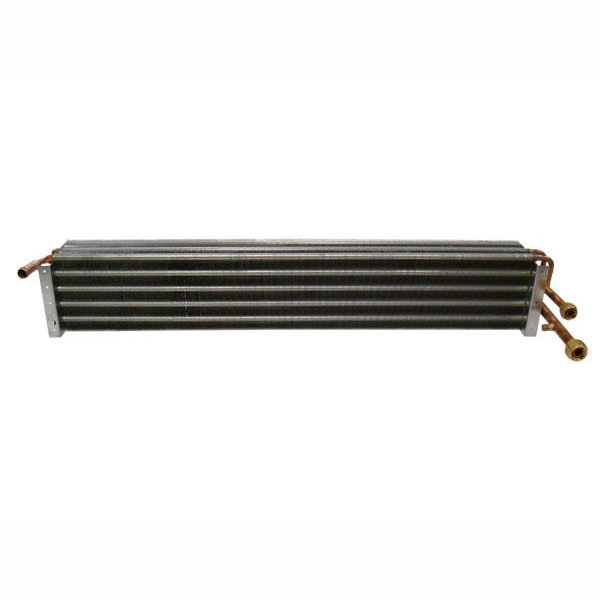

UJD99094 Evaporator with Heater Core, New - AR88076

UJD99094 Evaporator with Heater Core, New - AR88076
New Evaporator With Heater Core, Must Reuse Original Brackets

Replaces AR88076, AZ37729, RE52265, 590-5683

Replaces Early Models With Separate Heater Core, Tractors With Separate Heater Core Must Remove Roof Panel Spacer For Clearance

Fits JOHN DEERE: 4030, 4230, 4430, 4630, 4040, 4240, 4440, 4640, 4840, 4055, 4255, 4455, 4555, 4755, 4955, 4050, 4055, 4250, 4445, 4450, 4560, 4650, 4760, 4850, 4960, 8440, 8450, 8630, 8640, 8650, 8850

Replacement Evaporator With Heater Core, Must Reuse Original Brackets

Specifications
VALVE TYPE Bulb Type
FITTING TYPE O-Ring
CORE LENGTH 29"
CORE HEIGHT 5"
CORE WIDTH 3 1/8"
OVERALL LENGTH 33 1/4"
OVERALL HEIGHT 5"
OVERALL WIDTH 12 1/2"
FITTING INLET #8 Female O-Ring
FITTING OUTLET #10 Female O-Ring

Evaporator, New

Price: $270.00

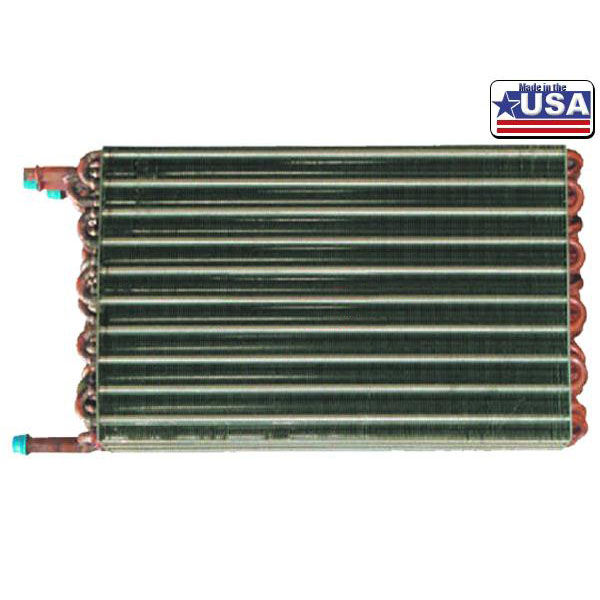

UJD999740 Evaporator with Heater Core, New - RE57574

UJD999740 Evaporator with Heater Core, New - RE57574
New Evaporator with Heater Core

Replaces RE57574, 590-5688

Fits JOHN DEERE: 8100, 8200, 8300, 8400

Specifications
VALVE TYPE Block - Flange Mount
FITTING TYPE O-Ring
CORE LENGTH 15 1/2"
CORE HEIGHT 10"
CORE WIDTH 3 3/4"
OVERALL LENGTH 19 1/4"
OVERALL HEIGHT 10 1/8"
OVERALL WIDTH 4 11/16"
FITTING INLET #8 O-Ring
FITTING OUTLET #10 O-Ring

Evaporator, New

Price: $380.00

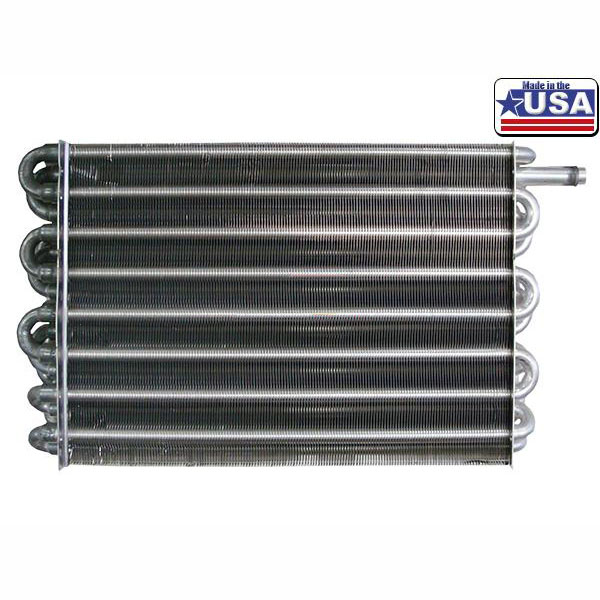

UJD9997556 Evaporator, New - RE177968

UJD9997556 Evaporator, New - RE177968
New Evaporator Without Heater Core

Replaces RE162768, RE177968, 590-5695

Fits JOHN DEERE: 8110 (Economy Cab), 8210 (Economy Cab), 8310 (Economy Cab), 8410 (Economy Cab), 8130, 8230, 8330, 9400 (SN 030001 and Above, Economy Cab)

Specifications
VALVE TYPE Block - Flange Mount
FITTING TYPE O-Ring
CORE LENGTH 13 1/2"
CORE HEIGHT 10"
CORE WIDTH 3 1/8"
OVERALL LENGTH 17 3/4"
OVERALL HEIGHT 10"
OVERALL WIDTH 4"
FITTING INLET #8, 1/2" O-Ring
FITTING OUTLET #10, 5/8" O-Ring

Evaporator, New

Price: $360.00

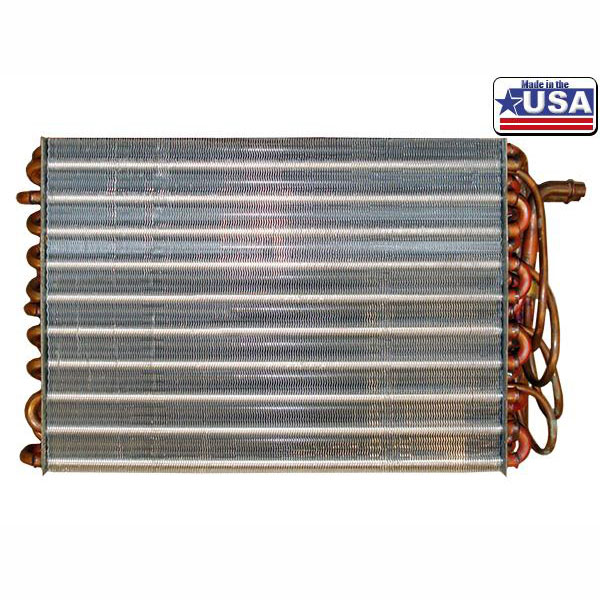

UJD999788 Evaporator, New - RE286345

UJD999788 Evaporator, New - RE286345
New Evaporator, Outlet at Top LH Side

Replaces RE286345, RE187311, RE327083, EV-113, 590-5698

Fits JOHN DEERE: 7720 (Evaporator Outlet at Top LH Side), 7820 (Evaporator Outlet at Top LH Side), 7920 (Evaporator Outlet at Top LH Side), 8410 (with Automatic Temp Control),
8130 (Evaporator Outlet at Top LH Side), 8230 (Evaporator Outlet at Top LH Side), 8330 (Evaporator Outlet at Top LH Side), 8430, 8530 (Evaporator Outlet at Top LH Side), 9400 (with Automatic Temp Control)

Fits Later Serial Numbered Tractors with Automatic Temp Control, For Bolt on Heater Core
Copper Tube and Fin, Evaporator Outlet at Top LH Side

Specifications
VALVE TYPE Block – Flange Mount
FITTING TYPE O-Ring
CORE LENGTH 13 1/2"
CORE HEIGHT 10"
CORE WIDTH 3 3/4"
OVERALL LENGTH 18"
OVERALL HEIGHT 10"
OVERALL WIDTH 4 3/8"
FITTING INLET #8, 1/2" O-Ring
FITTING OUTLET #10, 5/8" O-Ring

Evaporator, New

Price: $390.00

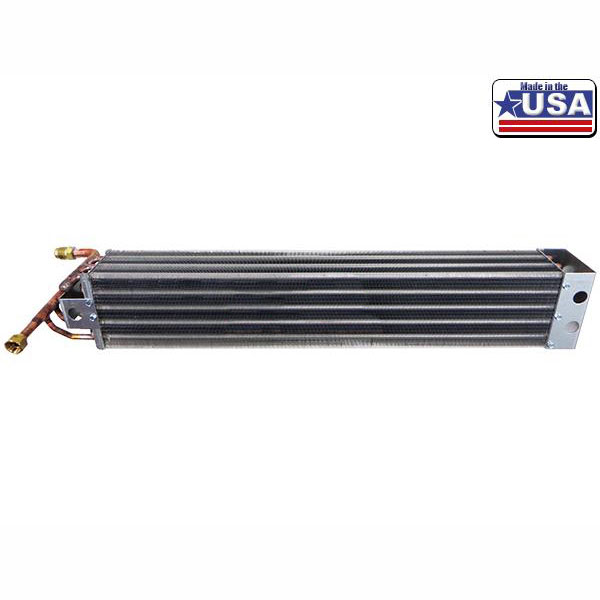

UJD999789 Evaporator, New - AR49966

UJD999789 Evaporator, New - AR49966
New Evaporator

Replaces AR49966, 590-5678

Fits JOHN DEERE: 4520 (Stolper Cab with SN 208300 and Above), 7520

Specifications
VALVE TYPE Coil
FITTING TYPE Flare
CORE LENGTH 28 3/4"
CORE HEIGHT 5 1/8"
CORE WIDTH 3 3/4"
OVERALL LENGTH 33 1/2"
OVERALL HEIGHT 5 1/8"
OVERALL WIDTH 8 1/2"
FITTING INLET #8 Female Flare
FITTING OUTLET #10 Male Flare

Evaporator, New

Price: $375.00

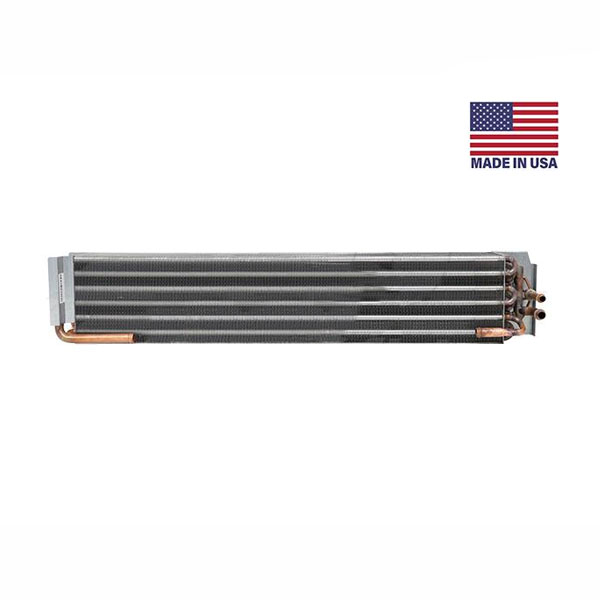

UJD999814 Evaporator with Heater Core, New - RE58069

UJD999814 Evaporator with Heater Core, New - RE58069
New Evaporator with Heater Core

Replaces RE58069, RE241389, RE152404, RE180248, RE241384, RE180243, RE176560, RE241383, AL154342, 590-5693

Fits JOHN DEERE: 5220 (SN 420000 & Below), 5320 (SN 420000 & Below), 5420 (SN 420000 & Below), 5520 (SN 420000 & Below), 7200 (SN 002430 & Above), 7400 (SN 002846 & Above), 7600 (SN 005988 & Above), 7700 (SN 007100 & Above), 7800 (SN 010247 & Above), 7210 (SN 0055078 & Above), 7410 (SN 0055078 and Above), 7510 (SN 0055078 & Above), 7610, 7710, 7810

Specifications
VALVE TYPE Block
FITTING TYPE O-Ring
CORE LENGTH 29"
CORE HEIGHT 6 1/8"
CORE WIDTH 3 3/4"
OVERALL LENGTH 33 1/2"
OVERALL HEIGHT 6 1/8"
OVERALL WIDTH 5 3/8"
FITTING INLET #8 O-Ring
FITTING OUTLET #10 O-Ring

Evaporator, New

Price: $500.00

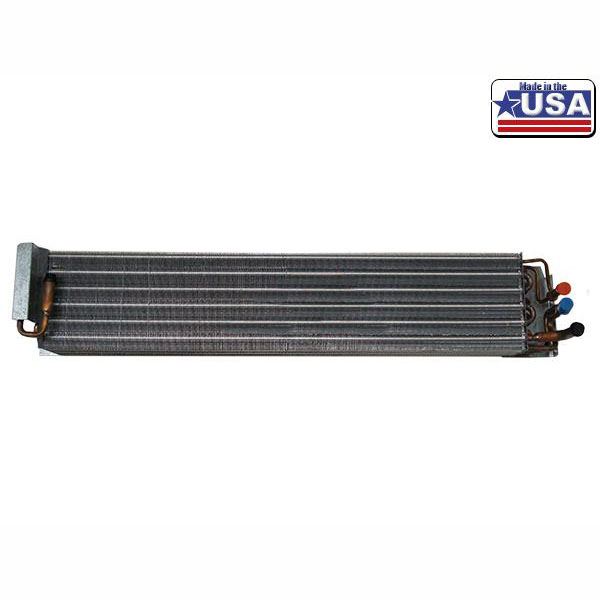

UJD999815 Evaporator with Heater Core, New - RE241392

UJD999815 Evaporator with Heater Core, New - RE241392
New Evaporator/Heater Core

Replaces RE241392, RE46768, 590-5682

Fits JOHN DEERE: 7200 (SN 002429 and Below), 7400 (SN 002845 and Below), 7600 (SN 005987 and Below), 7700 (SN 007099 and Below), 7800 (SN 010246 and Below)

Specifications
VALVE TYPE Block - Flange Mount
FITTING TYPE O-Ring
CORE LENGTH 29"
CORE HEIGHT 6"
CORE WIDTH 3"
OVERALL LENGTH 33 1/2"
OVERALL HEIGHT 6"
OVERALL WIDTH 6"
FITTING INLET #8 O-Ring
FITTING OUTLET #10 O-Ring

Evaporator, New

Price: $330.00

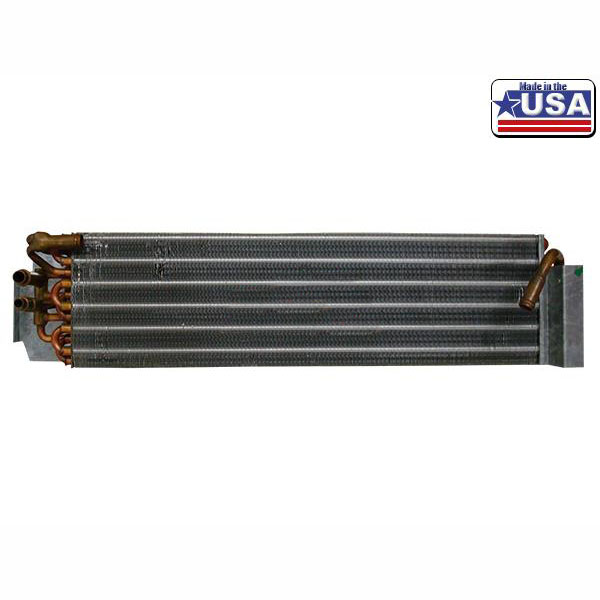

UJD999857 Evaporator with Heater Core, New - AL163858

UJD999857 Evaporator with Heater Core, New - AL163858
New Evaporator/Heater Core

Replaces AL163858, AL159602, AL110260, 590-5697

Fits JOHN DEERE: 6140J, 6145J, 6155J, 6165J, 6180J, 6215, 6415, 6615, 6715

Specifications
CORE LENGTH 21 1/4"
CORE HEIGHT 6"
CORE WIDTH 3 3/4"
OVERALL LENGTH 26 3/8"
OVERALL HEIGHT 6"
OVERALL WIDTH 6 1/4"

Evaporator, New

Price: $410.00

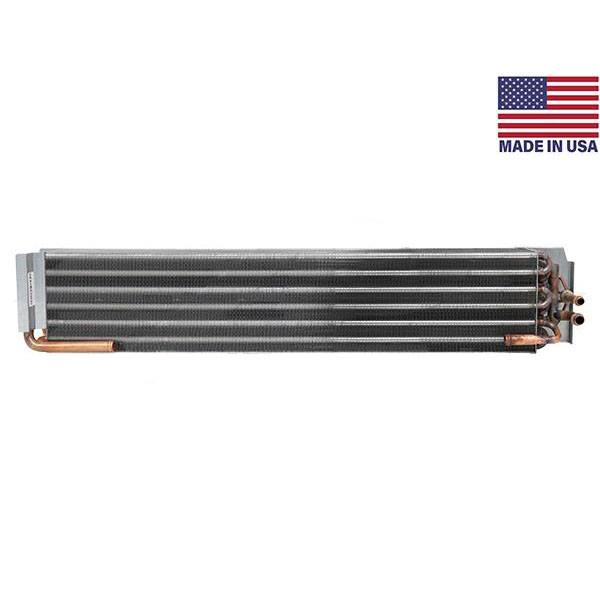

UJD999870 Evaporator With Heater Core, New - AL163862

UJD999870 Evaporator With Heater Core, New - AL163862
New Evaporator/Heater Core

Replaces AL163862, AL112100, AL160349, AL163864, AL160351, AL210817, AL219022 , AL225309, 590-5690

Fits JOHN DEERE:
6200, 6300, 6400,
6120, 6220, 6320, 6420,
6105M, 6110M (Final Tier 4, Final Tier 4 - MY18, MY20), 6115M, 6120M, 6125M, 6130M (Final Tier 4, Final Tier 4 - MY18, MY20), 6150M, 6155M, 6170M, 6175M,
6230, 6330, 6430,
7600 (with Split Heater Core and Evaporator), 7700 (with Split Heater Core and Evaporator),
7210 (Split Core, SN 0055078 and Above), 7410 (Split Core, SN 0055078 and Above), 7510 (Split Core, SN 0055078 and Above),
7610 (with Split Heater Core and Evaporator), 7710 (with Split Heater Core and Evaporator), 7810 (with Split Heater Core and Evaporator),
7220, 7320, 7420, 7520MFWD

Specifications
VALVE TYPE Block Type
FITTING TYPE O-Ring
CORE LENGTH 28 3/4"
CORE HEIGHT 6"
CORE WIDTH 3 7/8"
OVERALL LENGTH 33 1/2"
OVERALL HEIGHT 6 1/8"
OVERALL WIDTH 5 1/2"
FITTING INLET #8 O-Ring
FITTING OUTLET #10 O-Ring

Evaporator, New

Price: $375.00

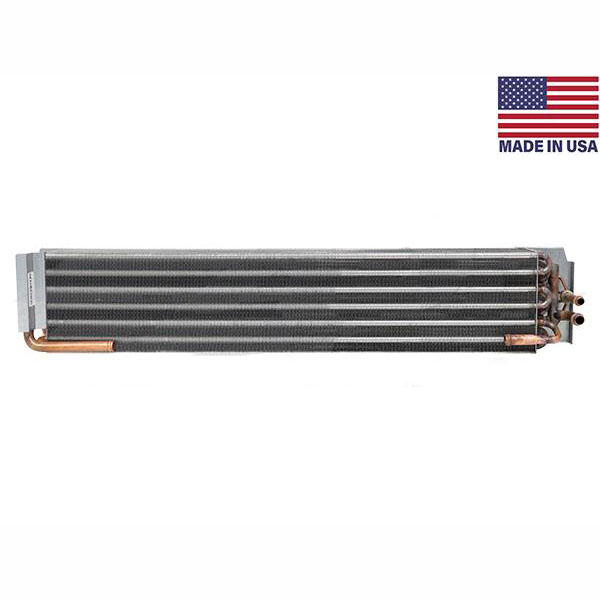

UJD999872 Evaporator with Heater Core, New - RE152404

UJD999872 Evaporator with Heater Core, New - RE152404
New Evaporator with Heater Core

Replaces RE152404, RE241384, RE180243, 590-5693

Fits JOHN DEERE: 6110, 6210, 6310, 6410, 6510, 7200 (SN 003823 and Above), 7400 (SN 005044 and Above), 7600 (SN 008004 and Above), 7700 (SN 010008 and Above), 7800 (SN 015008 and Above), 7210 (SN 055077 and Below), 7410 (SN 055077 and Below), 7510 (SN 055077 and Below), 7610 (SN 055146 and Below), 7710 (SN 055146 and Below), 7810 (SN 055146 and Below)

Specifications
VALVE TYPE Block Type
FITTING TYPE O-Ring
CORE LENGTH 29"
CORE HEIGHT 6 1/8"
CORE WIDTH 3 3/4"
OVERALL LENGTH 33 1/2"
OVERALL HEIGHT 6 1/8"
OVERALL WIDTH 5 3/8"
FITTING INLET #8 O-Ring
FITTING OUTLET #10 O-Ring

Evaporator, New

Price: $500.00

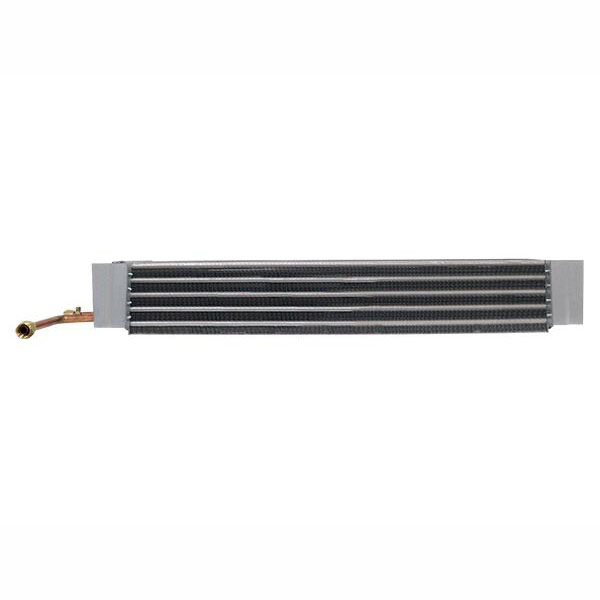

UJD999898 Evaporator With Heater Core, New - RE13885

UJD999898 Evaporator With Heater Core, New - RE13885
New Evaporator with Heater Core - John Deere Utility Tractors With Sound Guard 2 Cab

Replaces RE13885, 590-5680

Fits JOHN DEERE: 2355, 2555, 2755, 2855N, 2955, 3155, 2940, 2350, 2550, 2750, 2950

Specifications
VALVE TYPE Bulb Type
FITTING TYPE O-Ring
CORE LENGTH 29"
CORE HEIGHT 5"
CORE WIDTH 3"
OVERALL LENGTH 38"
OVERALL HEIGHT 5"
OVERALL WIDTH 9 1/4"
FITTING INLET #8 Female O-Ring
FITTING OUTLET #10 Female O-Ring

Evaporator, New

Price: $340.00

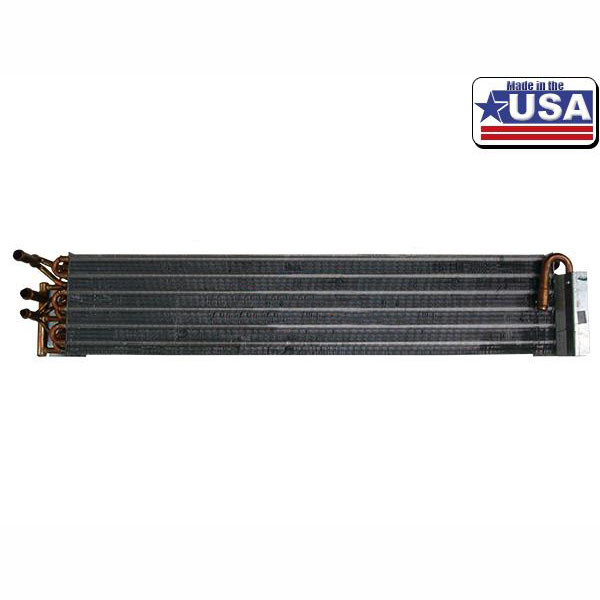

UJD999957E Evaporator, New - RE64739

UJD999957E Evaporator, New - RE64739
New Evaporator

Replaces RE64739, 590-5675

Fits JOHN DEERE: 5200, 5300, 5400, 5500, 5210, 5310, 5410, 5510

Specifications
VALVE TYPE Block Type
FITTING TYPE Flange
CORE LENGTH 29"
CORE HEIGHT 6"
CORE WIDTH 3 3/4"
OVERALL LENGTH 33 1/2"
OVERALL HEIGHT 6 1/4"
OVERALL WIDTH 5 3/4"
FITTING INLET #8
FITTING OUTLET #10

Evaporator, New

Price: $440.00

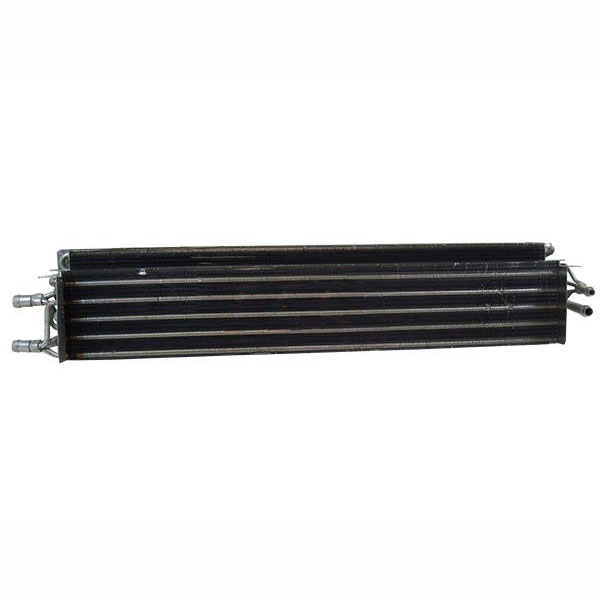

UJD999967 Evaporator with Heater Core, New - RE207295

UJD999967 Evaporator with Heater Core, New - RE207295
New Evaporator with Heater Core

Replaces RE207295, SJ10196, 590-5700

Fits JOHN DEERE: 5085E, 5101E, 5065M, 5095M (MH Models), 5100MH (SN 004178 and Below), 5220 (SN 420001 and Above), 5320 (SN 420001 and Above), 5420 (SN 420001 and Above), 5520 (SN 420001 and Above), 5225, 5325, 5425, 6100D, 6105D (SN 004178 and Below), 6110D (ML Models), 6115D (SN 004178 and Below), 6125D (ML Models), 6130D (Must ID By OEM Number), 6140D (SN 004178 and Below)

Specifications
VALVE TYPE Block
FITTING TYPE O-Ring
CORE LENGTH 29"
CORE HEIGHT 6 1/4"
CORE WIDTH 4"
OVERALL LENGTH 34 1/4"
OVERALL HEIGHT 6 1/4"
OVERALL WIDTH 4"
FITTING INLET #8 O-Ring
FITTING OUTLET #10 O-Ring

Evaporator, New

Price: $595.00

UJD999968 Evaporator with Heater Core, New - RE176560

UJD999968 Evaporator with Heater Core, New - RE176560
New Evaporator with Heater Core

Replaces RE176560, RE241383, AL154342, 590-5693

Fits JOHN DEERE: 5220 (SN 420000 & Below), 5320 (SN 420000 & Below), 5420 (SN 420000 & Below), 5520 (SN 420000 & Below), 7200 (SN 002430 & Above), 7400 (SN 002846 & Above), 7600 (SN 005988 & Above), 7700 (SN 007100 & Above), 7800 (SN 010247 & Above), 7210 (SN 0055078 & Above), 7410 (SN 0055078 and Above), 7510 (SN 0055078 & Above), 7610, 7710, 7810

Specifications
VALVE TYPE Block Type
FITTING TYPE O-Ring
CORE LENGTH 29"
CORE HEIGHT 6 1/8"
CORE WIDTH 3 3/4"
OVERALL LENGTH 33 1/2"
OVERALL HEIGHT 6 1/8"
OVERALL WIDTH 5 3/8"
FITTING INLET #8 O-Ring
FITTING OUTLET #10 O-Ring

Evaporator, New

Price: $500.00

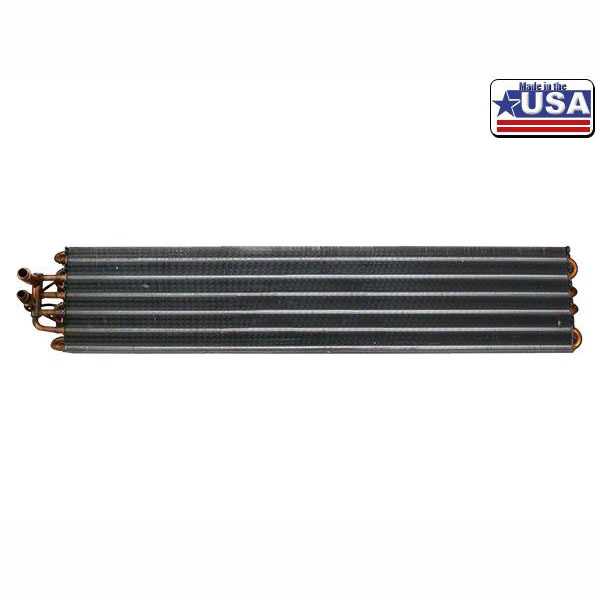

UJD999969 Evaporator, New - AL163863

UJD999969 Evaporator, New - AL163863
New Evaporator

Replaces AL163863, AL160350, 590-5689

Fits JOHN DEERE:
5085E, 5100E (SN 004178 and Below), 5101E, 5065M, 5095M (MH Models), 5100M (SN 004178 and Below), 5225, 5325, 5425, 5525, 5625,
5220 (SN 420001 and Above), 5320 (SN 420001 and Above), 5420 (SN 420001 and Above), 5520 (SN 420001 and Above),
6100D (ML Models), 6105D (SN 004178 and Below), 6110D (ML Models), 6115D (SN 004178 and Below), 6125D (ML Models), 6130D (Must ID By OEM Number), 6140D (SN 004178 and Below), 6120, 6220, 6320, 6420, 6230, 6330, 6430, 7220, 7320, 7420, 7520MFWD

Specifications
VALVE TYPE Block Type
FITTING TYPE O-Ring
CORE LENGTH 29"
CORE HEIGHT 6"
CORE WIDTH 2 1/2"
OVERALL LENGTH 32 3/4"
OVERALL HEIGHT 6"
OVERALL WIDTH 5 1/4"
FITTING INLET #8 O-Ring
FITTING OUTLET #10 O-Ring

Evaporator, New

Price: $350.00
