Walt's Tractor Parts | John Deere Tractor Parts -- | John Deere Fuel and Exhaust Parts | Carburetor/Carburetor Kit/Carburetor Parts - |  Carburetor Parts -

Carburetor Parts -

UJD34030 Carburetor Fuel Strainer Assembly with Gasket

UJD34030 Carburetor Fuel Strainer Assembly with Gasket
Replaces number AR10021, JDS2579

Fits: [ A, AH, AI, AN, ANH, AO, AOS, AR, AW, AWH, B, BI, BN, BNH, BO, BR, BW, BW40, BWH, BWH40, G, GH, GM, GN, GW, W111, W113 (using DLTX 5, 6, 7, 8, 9, 10, 11, 12, 13, 15, 16, 17, 18, 19, 24, 31, 33, 34, 38, 39, 41, 51, 53, 63, 67, 71, 72, 73, 107U, 108U single barrel carburetors) ], [ D, DI, GP (Late; using DLTX 5, 6, 7, 8, 9, 10, 11, 12, 13, 15, 16, 17, 18, 19, 24, 31, 33, 34, 38, 39, 41, 51, 53, 63, 67, 71, 72, 73, 107U, 108U single barrel carburetors) ], 50 (all fuel; up to SN: 5015950; using DLTX 5, 6, 7, 8, 9, 10, 11, 12, 13, 15, 16, 17, 18, 19, 24, 31, 33, 34, 38, 39, 41, 51, 53, 63, 67, 71, 72, 73, 107U, 108U single barrel carburetors), 60 (all fuel; up to SN: 6013899; using DLTX 5, 6, 7, 8, 9, 10, 11, 12, 13, 15, 16, 17, 18, 19, 24, 31, 33, 34, 38, 39, 41, 51, 53, 63, 67, 71, 72, 73, 107U, 108U single barrel carburetors);

Price: $28.00

UJD34000 Carburetor Bowl---Replaces A5173R

UJD34000 Carburetor Bowl---Replaces A5173R
Replaces number A5173R, AR10074R, 65-703, JDS821

Fits: 50, 60, 70, 520, 530, 620, 630, 720, 730

All with Double Barrel Marvel Schebler DLTX 75, 81, 82, 83, 84, 85, 86, 94, 95, 96, 97, 98, 99, 101, 102, 105, 106

Price: $58.00

UJD34001 Elbow and Strainer

UJD34001 Elbow and Strainer
Replaces number ABC297

Used with flair fitting

Screen End--1/8" Pipe
Female End--1/4" Flare

Price: $7.00

UJD34014 Elbow and Strainer---Replaces: AM815T

UJD34014 Elbow and Strainer---Replaces: AM815T
Replaces: number AM815T, JDS1058

Fits: L Series, M Series, 40, 320, 330, 420, 430, 440, 1010

For Marvel Schebler carburetors TSX 245, 475, 530, 562, 641, 678, 688, 689, 777, 809, 812, 860

Price: $22.00

UJD34002 Float Valve (Needle and Seat)---Replaces 233-536

UJD34002 Float Valve (Needle and Seat)---Replaces 233-536
Replaces number 233-536, ABC230

Fits: L, LA, LI, 1010 up to SN:31000

For Models with Marvel Schebler carburetors

Price: $7.00

UJD34003 Float Valve(Needle and Seat)---Replaces 233-543

UJD34003 Float Valve(Needle and Seat)---Replaces 233-543
Replaces numbers 233-543, 233-595, ABC133

Fits: M, 40, 50, 60, 70, 320, 330, 420, 430, 440, 520, 530, 620, 630, 720, 730, 2010, 2020

For Marvel Schebler carburetor numbers TSX 245, 475, 530, 688, 756, 777, 808, 810
For Marvel Schebler carburetor nubers DLTX 75, 86, 81, 84, 82, 85, 96, 99, 94, 97, 95, 98,

Price: $7.00

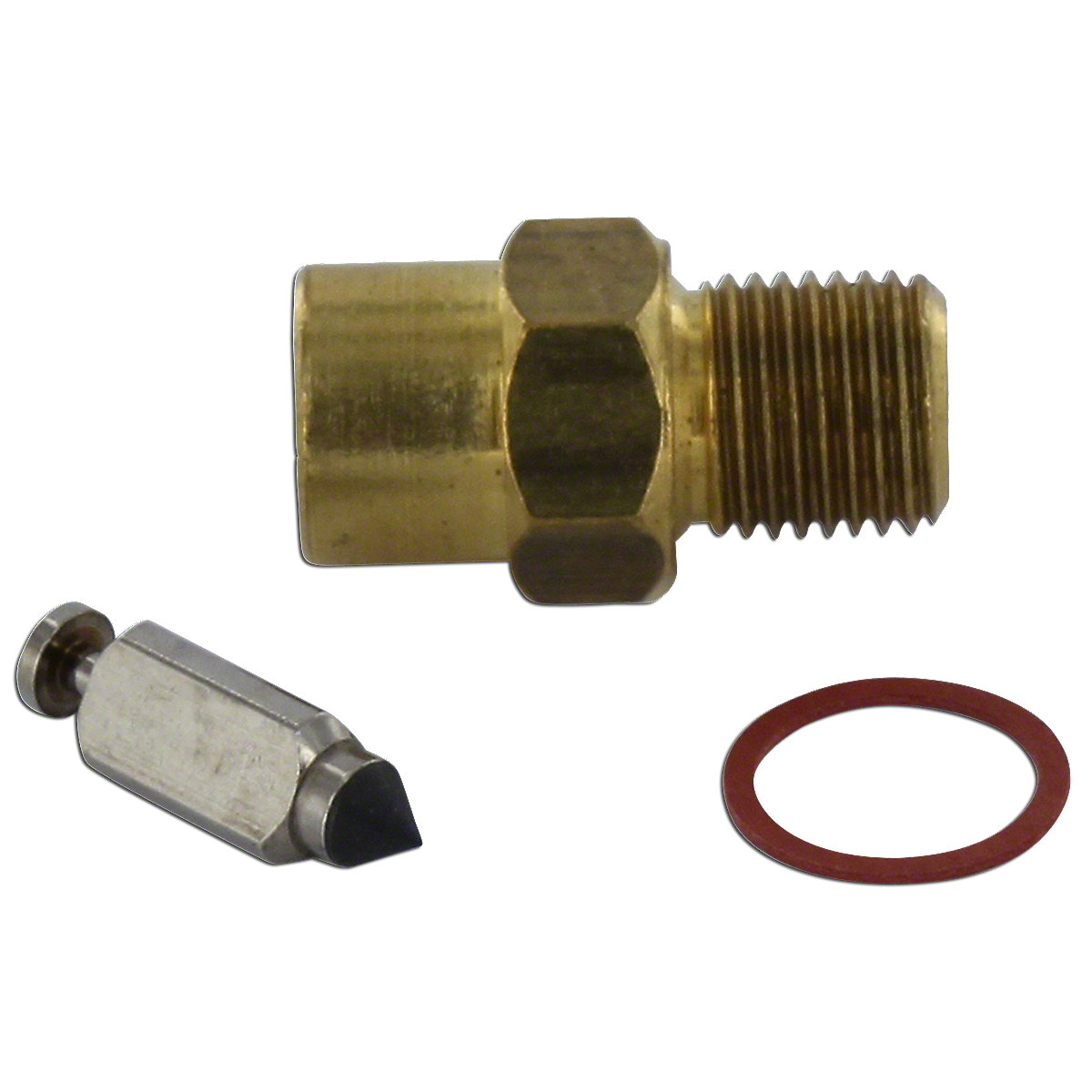

UJD34011 Float Valve(Needle and Seat)---Replaces 233-574

UJD34011 Float Valve(Needle and Seat)---Replaces 233-574
Replaces numbers 233-574, AR10077R, AR10113R, C2501R, X2653, JDS1069

Fits: A series with DLTX 7, 18, 19, 24, 33, 39, 53, 71, 72,
Fits: B series with DLTX 3, 10, 34, 67, 73
Fits: D series with DLTX 3, 6, 12, 16, 63
Fits: G series with DLTX 5, 6, 8, 11, 13, 16, 24, 31, 38, 51
Fits: GP series with DLTX 5, 15, 17
Fits: 50 series with all fuel DLTX 73
Fits: 60 series with all fuel DLTX 72
Fits: Stationary Engine W

Price: $14.00

UJD34004 Carburetor Connector---Replaces A258R

UJD34004 Carburetor Connector---Replaces A258R
Replaces number A258R, D392R, JDS903

Fits: A, B, D, G, GP, H, R, 50, 60, 70, 80, 520, 530, 620, 630, 720, 730

1/8" Pipe to Inverted Flare

Price: $9.00

UJD34005 Carburetor Bowl Nut---Replaces R10063R

UJD34005 Carburetor Bowl Nut---Replaces R10063R
Replaces number R10063R, S2424, JDS905

Fits: A, B, D, G with DLTX number 24 and GP

The following with all fuel: 50 up to 5015950, 60 up to sn 6013899

Also fits Stationary Engine W & DLTX number 16, 18, 19,24, 33, 53, 63, 67, 71, 72 & 73

Bowl Gasket Not Included---Gasket mounts on outside of bowl.

Price: $12.00

UJD34025 Carburetor Bowl Nut-(Brass)---Replaces R10155

UJD34025 Carburetor Bowl Nut-(Brass)---Replaces R10155
Replaces number R10155, JDS2682

Fits: G with DLTX 51 big nut carburetor

Price: $15.00

UJD34006 Carburetor Bowl Nut-Hole in Center---Replaces R10156R

UJD34006 Carburetor Bowl Nut-Hole in Center---Replaces R10156R
Replaces number R10156R, 81-166, JDS901

Fits: 50 including All Fuel sn 5015951 and up, 60 including All Fuel sn 6013900 and up, 70 both gas snd All Fuel), 520, 530, 620, 630, 720 and 730 (All w/ dual induction carb)

Bowl Gasket Not Included---Gasket mounts on outside of bowl.

Price: $15.00

UJD34007 Carburetor Hardware Kit---Replaces JDS907

UJD34007 Carburetor Hardware Kit---Replaces JDS907
Single Induction Early Carburetor Hardware Kit

Fits: A series with DLTX 7, 18, 19, 24, 33, 39 & 53
Fits: B series w/ DLTX 3, 10 and 34
Fits: D & DI w/ith DLTX 3, 6, 16 and 63
Fits: G series with DLTX 5, 6, 8, 11, 13, 16, 24, 31, 38 and 51
Fits: GP w/ DLTX 5, 15 and 17

Helps complete your carb rebuild.

Jets and nozzles NOT included

Price: $30.00

UJD34008 Carburetor Hardware Kit---Replaces JDS909

UJD34008 Carburetor Hardware Kit---Replaces JDS909
Single Induction Late Carburetor Hardware Kit

Fits: Late A, B, L, 50 up to sn5015950, 60 up to sn 60 13899

For Marvel Schebler carburetors DLTX 67, 71, 72 & 73

Helps complete your carb rebuild.

Jets and nozzles NOT included

Price: $30.00

UJD34016 Adjustable Load Nozzle Assembly-T Handle

UJD34016 Adjustable Load Nozzle Assembly-T Handle
Replaces 43-134, 43-613, ABC562

Fits: M Series, 40, 420, 430, 440,

For Marvel Schebler carburetors TSX 245, 530, 688, 689, 756, 768, 777

Price: $25.00

UJD34017 Adjustable Load Nozzle Assembly--L Handle

UJD34017 Adjustable Load Nozzle Assembly--L Handle
Replaces number 43-622, 43-699, JDS1067

Fits: M, 40, 420, 430, 440

For Marvel Schebler carburetors TSX 245, 530, 688, 689, 756, 768, 777

Price: $60.00

UJD34009 Adjustable Load Nozzle Assembly

UJD34009 Adjustable Load Nozzle Assembly
Replaces number AH46109, R13068, R13069, R13070, H21058, JDS912

(1.965" overall length)

Fits: 3010, 3020, 4000, 4010 and 4020

All w/ 69 series Zenith carburetor and end mounted solenoid or load nozzle

NOTE: Used to eliminate the electric solenoid

Price: $50.00

UJD34010 Adjustable Load Nozzle Assembly

UJD34010 Adjustable Load Nozzle Assembly
Replaces number AH46109, R13068, R13069, R13070, H21058, JDS914

(2.417" overall length)

Fits: 3010, 3020, 4000, 4010 and 4020

All w/ 69 series Zenith carburetor and side mounted solenoid or load nozzle

NOTE: Used to eliminate the electric solenoid

Price: $50.00

UJD34012 Throttle Repair Bushing

UJD34012 Throttle Repair Bushing
Replaces number ABC513

Fits: L Series, 1010

.383 O.D., .247" I.D., .501" Long

For small bowl Marvel Schebler carburetor

Price: $3.00

UJD34013 Carburetor Bowl Nut Spring---Replaces R10078R

UJD34013 Carburetor Bowl Nut Spring---Replaces R10078R
Replaces number R10078R, JDS958

Fits: A, B, D, G with DLTX number 24 and GP
The following with all fuel: 50 up to 5015950, 60 up to sn 6013899;
Also fits Stationary Engine W & DLTX number 16, 18, 19,24, 33, 53, 63, 67, 71, 72 & 73

Price: $5.00

UJD34014MN Main Nozzle--Replaces 47-288

UJD34014MN Main Nozzle--Replaces 47-288
Replaces numbers 47-288, 47-391, JDS1056

Fits: M series, 40 with carb numbers TSX 245, 475, 530, 562

Price: $33.00

UJD34015 Main Nozzle---Replaces 47-451

UJD34015 Main Nozzle---Replaces 47-451
Replaces numbers 47-451, ABC559

Fits: 420, 430, 440 with carb numbers TSX 641, 688, 756

Price: $33.00

UJD34018 Fuel Shut-Off Valve--For Pony Motor at Carburetor---Replaces AF2153R

UJD34018 Fuel Shut-Off Valve--For Pony Motor at Carburetor---Replaces AF2153R
Replaces numbers AF2153R, AR1128R, JDS1065

Fits: 70, 80, 720, 820

For Pony Motor at Carburetor

Price: $30.00

UJD34019 Choke Shaft---Replaces AR10043

UJD34019 Choke Shaft---Replaces AR10043
Replaces number AR10043, JDS984

Fits: A series with DLTX 53
Fits: B series with DLTX34
Fits: G series with DLTX51

.245" diameter--2.925" Long

Price: $28.00

UJD34020 Throttle Shaft---Replaces AR10058

UJD34020 Throttle Shaft---Replaces AR10058
Replaces number AR10058, JDS988

Fits: A series with DLTX 71
Fits: B series with DLTX67
Fits: 50 series with All Fuel DLTX73
Fits: 60 series with All Fuel DLTX72

.245" diameter--2.925" Long

Price: $20.00

UJD34021 Throttle Shaft---Dual Induction---Replaces AR10060

UJD34021 Throttle Shaft---Dual Induction---Replaces AR10060
Replaces number AR10060, JDS1356

Fits: 60, 70, 620, 630, 720, 730 with carburetors DLTX 81, 82, 84, 85, 94, 95, 97, 98, 101, 102, 106

Price: $30.00

UJD34022 Throttle Shaft---Zenith---Replaces AR13017

UJD34022 Throttle Shaft---Zenith---Replaces AR13017
Replaces numbers AR13017, AR13020, ABC1354

Fits: 3010, 3020, 4000, 4010, 4020, Industrial 500, Industrial 600

For Zenith carburetors 12879, 13320, 13429, 13430, 13450

Price: $30.00

UJD30423 Choke Disc---Brass

UJD30423 Choke Disc---Brass
Replaces R10110, 27-208, JDS1135

Fits: A, AO, AR, 60 All Fuel Single Induction

Fits: DLTX 71, DLTX 72

1.876" Outside Diameter---,032" Thick

Price: $6.00

UJD30424 Choke Disc---Brass

UJD30424 Choke Disc---Brass
Replaces R10108, 27-181, JDS1138

Fits: B, 50 All Fuel Single Induction

Fits: DLTX 67, DLTX73

1.680" Outside Diameter---,036" Thick

Price: $6.00

UF30295 Choke Disc---Spring Flap

UF30295 Choke Disc---Spring Flap
Replaces number 27-530, 27-539, ABC1182

Fits: L, LA, LI, LUC

For Marvel Schebler TSX13, 45, 60, 85, 89, 90, 91, 237, 356, 516, U828, U829, U830, U831, U832, U833

1-5/16" Outside Diameter

Price: $18.00

UJD30425 Choke Disc---Brass

UJD30425 Choke Disc---Brass
Replaces R10112, 27-233, JDS1127

For Models with Dual Induction

Fits: 50, 60, 70, 520, 530, 620, 630, 720, 730

Fits: DLTX 75, 81, 82, 83, 84, 85, 86, 94, 95, 96, 97, 98, 99, 101, 102, 105, 106

1.880" Outside Diameter---,049" Thick

Price: $6.00

UJD30426 Throttle Disc---Brass

UJD30426 Throttle Disc---Brass
Replaces P948, R10024, 14-240, JDS1149

Fits: A, AO, AR, D, G, GP

Fits: DLTX 12, 15, 17, 18, 19, 24, 33, 41, 51, 53, 63,

1.686" Outside Diameter---,051" Thick

Price: $6.00

UJD30427 Throttle Disc---Brass

UJD30427 Throttle Disc---Brass
Replaces P1124, R10028, 14-238, JDS1145

Fits: B up to serial number 95999

Fits: DLTX 10

1.308" Outside Diameter---,051" Thick

Price: $6.00

UJD30428 Throttle Disc---Brass

UJD30428 Throttle Disc---Brass
Replaces R10080, 14-183, JDS1143

Fits: B serial number 96000 and up

Fits: DLTX 34, 67, 73

1.369" Outside Diameter---.049" Thick

Price: $6.00

UJD30429 Throttle Disc---Brass

UJD30429 Throttle Disc---Brass
Replaces R10029, P1205, JDS1140

Fits: H

Fits: DLTX 26, 46

1.243" Outside Diameter---.050" Thick

Price: $6.00

UJD30450 Throttle Disc---Steel

UJD30450 Throttle Disc---Steel
Replaces 14-175, ABC1159

Fits: L, LA, LI, LUC

Fits: TSX 13, 45, 60, 85, 89, 90, 91, 237, 356

1.105" Outside Diameter

Price: $6.00

UJD30451 Throttle Disc---Brass

UJD30451 Throttle Disc---Brass
Replaces R10083, 14-244, JDS1132

Fits: 60, 70, 620, 630, 720, 730

Fits: DLTX 81, 82, 84, 85, 94, 95, 97, 98, 101, 102, 106

1.755" Outside Diameter---.063" Thick

Price: $6.00

UJD30452 Throttle Disc---Brass

UJD30452 Throttle Disc---Brass
Replaces R10083, 14-244, JDS1132

Fits: 3010, 3020, 4010, 4020

Fits: USX 20, 21, 30, 35, 36, 45SL, 48SL, 49SL, 211

1.755" Outside Diameter---.063" Thick

Price: $6.00

UJD30453 Throttle Disc---Brass

UJD30453 Throttle Disc---Brass
Replaces R10083, 14-244, JDS1132

Fits: 3020, 4000, 4020

Fits: LP Carburetors AR44050, AR44053, AR46261

1.755" Outside Diameter---.063" Thick

Price: $6.00

UJD30454 Venturi (Plastic)---Marvel Schebler

UJD30454 Venturi (Plastic)---Marvel Schebler
Replaces 46-467, ABC1167

Fits: L, LA, LI, LUC

Fits: TSX516, U829, U832

11/16" Throat Diameter

Price: $11.00

UJD30430 Carburetor Fuel Strainer Screen, Gasket and Oring

UJD30430 Carburetor Fuel Strainer Screen, Gasket and Oring
Replaces number JDS2583

Fits: A, AH, AI, AN, ANH, AO, AOS, AR, AW, AWH, B, BI, BN, BNH, BO, BR, BW, BW40, BWH, BWH40, G, GH, GM, GN, GW, W111, W113 (using carburetor #'s DLTX 5, 6, 7, 8, 9, 10, 11, 12, 13, 15, 16, 17, 18, 19, 24, 31, 33, 34, 38, 39, 41, 51, 53, 63, 67, 71, 72, 73, 107U, 108U single barrel carburetors) ], [ D, DI, GP (Late; using carburetor #'s DLTX 5, 6, 7, 8, 9, 10, 11, 12, 13, 15, 16, 17, 18, 19, 24, 31, 33, 34, 38, 39, 41, 51, 53, 63, 67, 71, 72, 73, 107U, 108U single barrel carburetors) ], 50 (all fuel; up to SN: 5015950; using carburetor #'s DLTX 5, 6, 7, 8, 9, 10, 11, 12, 13, 15, 16, 17, 18, 19, 24, 31, 33, 34, 38, 39, 41, 51, 53, 63, 67, 71, 72, 73, 107U, 108U single barrel carburetors), 60 (all fuel; up to SN: 6013899; using carburetor #'s DLTX 5, 6, 7, 8, 9, 10, 11, 12, 13, 15, 16, 17, 18, 19, 24, 31, 33, 34, 38, 39, 41, 51, 53, 63, 67, 71, 72, 73, 107U, 108U single barrel carburetors);

Price: $12.00

Walt's Tractor Parts | John Deere Tractor Parts -- | John Deere Fuel and Exhaust Parts | Carburetor/Carburetor Kit/Carburetor Parts - |  Carburetor Parts -

Recently Viewed Parts


Customer Services

Website Information

How to get in touch with us

Call us on
888-414-4043888-414-4043

Waltstractors.com
2634 Audrain Road 381, Mexico, Missouri, 65265

Buy now with PayPal

© 2014 - 2024 Waltstractors.com
