Walt's Tractor Parts | Hay Baler, Sickle Mower, Disc Mower, Planter and Field Chopper Parts | Disc and Drum Mower Parts | New Holland Disc Mowers - | New Parts for New Holland Disc Mowers - |  615, 616, 617 New Holland Disc Mowers

615, 616, 617 New Holland Disc Mowers

UNHDS0550 New Bevel Gear---Replaces 86527124, 86504756, 86504753, 87036674

UNHDS0550 New Bevel Gear---Replaces 86527124, 86504756, 86504753, 87036674
Replaces number 86527124, 86504756, 86504753, 87036674

Fits: New Holland 615, 616, 617, H6730, H6740, H6750

Fits: Case IH: MD72, MD82, MD92, MDX71, MDX81, MDX91




Price: $85.00

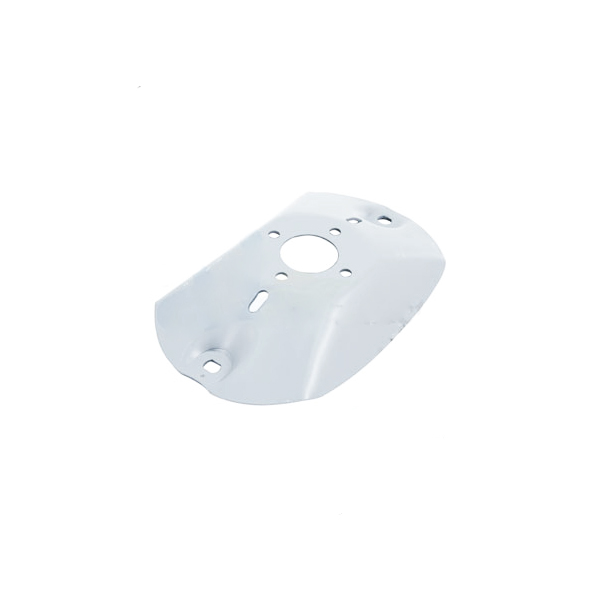

UNHDS0551 Disc Blade Mount---Replaces 87646406

UNHDS0551 Disc Blade Mount---Replaces 87646406
Replaces number 86620468, 87342192, 87040894, 87398661, 87040895

Fits: New Holland 615, 616, 617, H6730, H6740, H6750, H6830, H7220, H7230
H7320, H7330, H7460, H7560, 1309, 1410, 1411, 1412

Fits: Case IH: MD72, MD82, MD92, MDX71, MDX81, MDX91




Price: $60.00

UNHDS0552 Shaft---Replaces 86519039

UNHDS0552 Shaft---Replaces 86519039
Replaces number 86519039

Fits: New Holland 615, 616, 617, H6730, H6740, H6750, H6830, H7220, H7230
H7320, H7330, H7460, H7560, 1309, 1410, 1411, 1412

Fits: Case IH: MD72, MD82, MD92, MDX71, MDX81, MDX91

Length 10.55" / 268mm

Price: $55.00

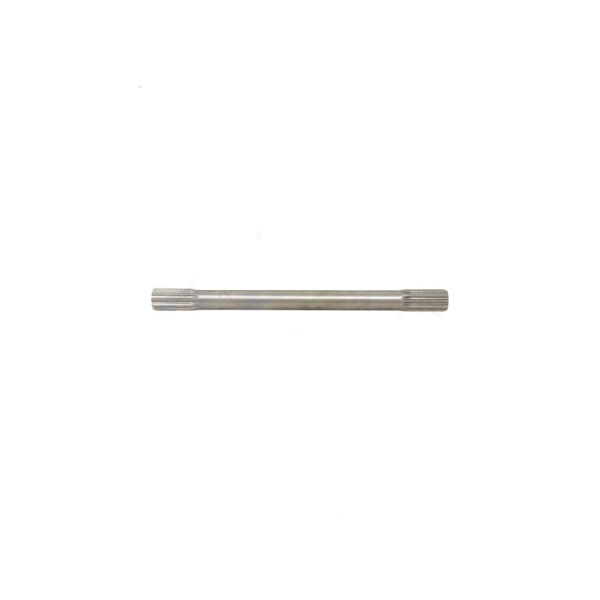

UNHDS0553 Shaft---Replaces 86519042

UNHDS0553 Shaft---Replaces 86519042
Replaces number 86519042

Fits: New Holland 615, 616, 617, H6730, H6740, H6750, H6830, H7220, H7230
H7320, H7330, H7460, H7560, 1309, 1410, 1411, 1412

Fits: Case IH: MD72, MD82, MD92, MDX71, MDX81, MDX91

Length 9.76" / 248mm

Price: $55.00

UNHDS0554 Disc Mower Curtain---Replaces 86622314
Replaces number 86622314

Fits: New Holland 616, H6740

Fits: Case IH: MD82, MDX81

Length 109.50"
Width 51.63"

Price: $550.00

UNHDS0555 Disc Mower Curtain---Replaces 86622313
Replaces number 86622313

Fits: New Holland 615, H6730

Fits: Case IH: MD72, MDX71

Length 95.33"
Width 51.63"

Price: $550.00

UNHDS0556 Disc Mower Curtain---Replaces 86622315
Replaces number 86622315, 87047285

Fits: New Holland 617, H6750

Fits: Case IH: MD92, MDX91

Length 125.25"
Width 51.63"


Price: $575.00

UNHDS0557 Main Drive Belt (4 Band)--Replaces 87012453

UNHDS0557 Main Drive Belt (4 Band)--Replaces 87012453
Replaces number 87012453, 86523096

Fits: New Holland 615, 616, 617, H6730, H6740, H6750
Fits: Case IH: MD72, MD82, MD92, MDX71, MDX81, MDX91

5/8 X 112.5 Wrap 4band Kevlar Cord
Color Black
Length 112.5
Material Kevlar Cord
Thickness 0.499
Type Wrap 4band
Width 5/8

Price: $115.00

UNHDS0400 Driveline---Replaces 87013312

UNHDS0400 Driveline---Replaces 87013312
Replaces number 87013312, CS53517

Fits: New Holland 615, 616, 617, H6730, H6740, H6750

Fits: Case IH: MDX71, MDX81, MDX91, MD72, MD82, MD92

100 series driveline with overrunning clutch, size 5. Driveline rated as a category 4 (47 hp).
Minimum C-to-C length: 35" (885 mm), Maximum length: 52" (1310 mm),
Total collapsed length: 44" (1092 mm). Tractor end: 1-3/8" 6 Spline, Female end: 1-3/8" 6 spline overrunning clutch.

Price: $350.00

UNHDS0560 Disc Mower Blade-Left Hand Twist-Group of 25---Replaces 9847684

UNHDS0560 Disc Mower Blade-Left Hand Twist-Group of 25---Replaces 9847684
Replaces number 9847684

Quantity of 25

7 Degree Left Hand Twist

Fits: New Holland 615, 616, 617, H6730, H6740, H6750
Fits: Case IH: MD72, MD82, MD92, MDX71, MDX81, MDX91

Hole Diameter .90" / 22.8 mm
Length 4.33" / 110 mm
Thickness .16" / 4 mm
Type 10 LH
Width 2.00" / 50.8 mm

Price: $45.00

UNHDS0561 Disc Mower Blade-Right Hand Twist-Group of 25---Replaces 9847683

UNHDS0561 Disc Mower Blade-Right Hand Twist-Group of 25---Replaces 9847683
Replaces number 9847683

Quantity of 25

7 Degree Left Hand Twist

Fits: New Holland 615, 616, 617, H6730, H6740, H6750
Fits: Case IH: MD72, MD82, MD92, MDX71, MDX81, MDX91

Hole Diameter .90" / 22.8 mm
Length 4.33" / 110 mm
Rotation Clockwise
Thickness .16" / 4 mm
Type 10 RH
Width 2.00" / 50.8 mm

Price: $45.00

UNHDS0562 Disc Mower Blade-Bolt and Nut Kit-Group of 6---Replaces 86515926 bolt & 86515265 nut

UNHDS0562 Disc Mower Blade-Bolt and Nut Kit-Group of 6---Replaces 86515926 bolt & 86515265 nut
Replaces number 86515926 bolt & 86515265 nut, 86515926K

Quantity of 6

Fits: New Holland 615, 616, 617

Price: $42.00
