12 Volt Alternator Conversion Kit

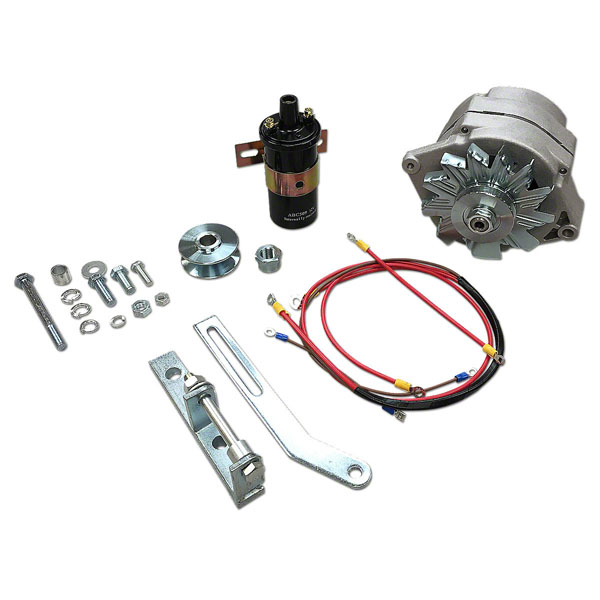

UM42040 Alternator Conversion Kit, 12 Volt

12 Volt Alternator Conversion Kit

Serviceable, for following w/ Continental gas/LP with minor grinding on brackets for clearance but there will be no provision for the tachometer drive

Replaces TO30ALT12V, MFS3805

Fits Massey Ferguson: TO30, TO35, F40, 35, 50, 135, 150

Serviceable, for following w/ Continental gas/LP with minor grinding on brackets for clearance but there will be no provision for the tachometer drive

Kit Includes:
- 63 amp 1 wire alternator
- Mounting brackets
- Wire harness
- 12 Volt internally resisted coil

Price: $205.00

Total Price:

Quantity:

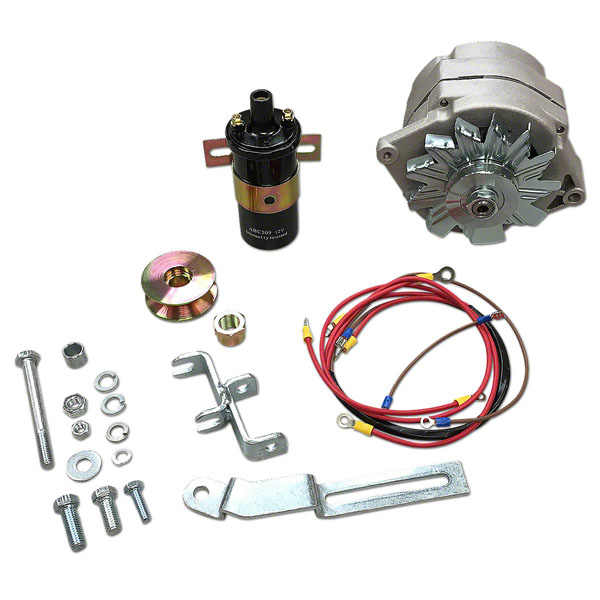

UM40244 Alternator Conversion Kit, 12 Volt

12 Volt Alternator Conversion Kit

Replaces MFS3812

Fits MASSEY FERGUSON: TO20 (with original Z120C500 block and without optional tachometer drive), TE20 (with original Z120C500 block and without optional tachometer drive)

WILL NOT FIT late replacement blocks with mounting bosses on the block (for the lower bracket)

Includes:
- 63 amp 1 wire alternator
- Mounting brackets
- Wire harness
- 12 Volt internally resisted coil

WILL NOT FIT late replacement blocks with mounting bosses on the block (for the lower bracket)

Price: $185.00

Total Price:

Quantity:

UM40245 Alternator Bracket Kit---Replaces MFS3771

Replaces number MFS3771

Massey Ferguson - Fits: [ F40, MF35, MF50, TO30, TO35 (gas, LP only) ], 65 (lower only; gas, LP)
Massey Harris - Fits: 50 (MH50; gas, LP only)

Price: $25.00

Total Price:

Quantity:

UM42041 One Wire Alternator

63 Amp Alternator with pulley

2-1/2 inch pulley diameter, 5/8 inch belt width

Must rev engine to 800 RPM to self excite

Price: $97.85

Total Price:

Quantity:

UA53154 Alternator Pulley

For 5/8" Width Belt

.670" Shaft Diameter

2-1/2" Outside Diameter

Price: $22.00

Total Price:

Quantity:

UT2557 Alternator Pulley

For 1/2" Width Belt

.670" Shaft Diameter

3-3/16" Outside Diameter

Price: $19.00

Total Price:

Quantity:

UM42042 Universal Alternator Mounting Kit

Universal Alternator Mounting Kit

Does not include top adjusting bracket

Price: $39.30

Total Price:

Quantity:

UA53151 Top Adjusting Bracket

7/8" Wide--1-1/2" Offset--8-1/4" from farthest end of slot to center of mounting hole

3-3/4" slot length--3/8" mounting hole

Price: $24.95

Total Price:

Quantity:

UA53153 MINI-Alternator--42 Amp with Pulley and Diode

For tractors requiring a smaller diameter alternator for clearance

Dimensions & Notes: 4-1/2" housing diameter, 2-1/2" pulley diameter----3/8" belt width

For 12 Volt Negative Ground Systems Only

This alternator has a built in regulator, that requires an excitation circuit--Includes Instructions

Price: $180.00

Total Price:

Quantity:

UA53153P Pulley---Fits:UA53153

Dimensions---.587" I.D.----1.437" Overall Length---3" Diameter Pulley

5/8" Belt Width

Price: $34.95

Total Price:

Quantity:
